Block Master

25EV Series
6.35mm centers
10A 300V 10-22AWG
300/310 Series
5 mm centers
10A 250V 14-22AWG

301/311 Series
5 mm centers
10A 250V 14-22AWG
DT123RA Series
5 mm centers
15A 300V 16-22AWG

EK381V4L Series
3.81 mm centers
6A 150V 16-24AWG
EK950V Series
9.5 mm centers
30A 300V 10-26AWG

MSB/MEB Series
5 and 5.08mm centers
13.5A 300V 16-30AWG
MSD Series
2.54mm centers
3A 125V 16-30AWG

MSG/MEG Series
5 and 5.08mm centers
13.5A 300V 16-30AWG
MTS Series
3.5 and 3.81mm centers
12A 300V 14-30AWG

MSM/MSE Series
5 and 5.08mm centers
17.5A 300V 14-30AWG
MSM/MSE Series
7.5 and 7.62mm centers
17.5A 450V 14-30AWG

MSQ/MEQ Series
5 and 5.08mm centers
24A 300V 12-30AWG
MSQ/MEQ Series
7.5 and 7.62mm centers
24A 450V 12-30AWG

PA001/PA002 Series
5mm centers
10A 300V 14-26AWG
PSB/PEB Series
5 and 5.08mm centers
13.5A 300V 16-30AWG

PSM/PEM Series
5 and 5.08mm centers
17.5A 300V 14-30AWG
PSQ/PEQ Series
5 and 5.08mm centers
24A 300V 12-30AWG

302/312 Series
3.5mm centers
7A 250V 18-26AWG
320 Series
5 mm centers
10A 250V 14-22AWG

MSM Series
5 and 5.08mm centers
17.5A 300V 14-30AWG

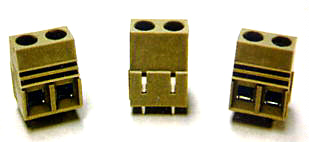

MH120-0164 Series
10.16 mm centers
65A 300V 6-26AWG

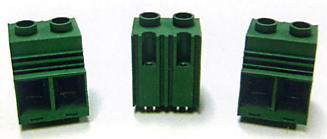

MH130-1505 Series
15 mm centers
125A 600V 2-20AWG
