Features:

Economical wire protector products.
2 and 3 position modular.
Machine type inserts.
301 series are low profile vertical blocks.
311 series are low profile right angle blocks.
Wire protector system.
Black (standard) or blue color available.

301/311 Series

Electrical

Current: 10A@250V

Wire range: 14 to 22 AWG

Pin dimension: ø1mm

CR: <20m ohms

IR: >5000M ohms (1000V DC)

Operating temp: -55°C to +105°C

Stripping length: 6mm

Torque: 4.5 lbs-in

PCB holes: min 1.6mm

PCB thickness: max. 2.3mm

Climactic category: 40/110/21 Acc. to IEC 68-1

Materials

Housing: PBT-4115 (UL94V-0)

Metal Housing: Brass (Cu, Zn), Cu, Tin plated

Wire Guard: Stainless steel

Terminal: Brass (Cu, Zn), Tin plated

Screw: M2.6, steel, chromated and galvanized

Colors available: Black (standard), blue (optional)

Electrical
Current:	10A@250V
Wire range:	14 to 22 AWG
Pin dimension:	ø1mm
CR:	<20m ohms
IR:	>5000M ohms (1000V DC)
Operating temp:	-55°C to +105°C
Stripping length:	6mm
Torque:	4.5 lbs-in
PCB holes:	min 1.6mm
PCB thickness:	max. 2.3mm
Climactic category:	40/110/21 Acc. to IEC 68-1
Materials
Housing:	PBT-4115 (UL94V-0)
Metal Housing:	Brass (Cu, Zn), Cu, Tin plated
Wire Guard:	Stainless steel
Terminal:	Brass (Cu, Zn), Tin plated
Screw:	M2.6, steel, chromated and galvanized
Colors available:	Black (standard), blue (optional)

Marking

Adhesive marking strips not available.

Ink marking by factory (specify in order number):

: 0 = no marking; 1 = numbered 1 2 3 4 etc. Left to right.; Minimums apply for marking.

Contact BECKWITH ELECTRONICS for additional information.

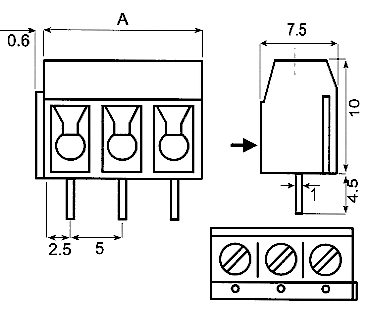

301 Series (vertical)


Dimensions n=number of poles L=(n-1) x 5 Also available in 10mm centers. Consult BECKWITH ELECTRONICS for more information.
311 Series (right angle)


Dimensions n=number of poles L=(n-1) x 5 Also available in 10mm centers. Consult BECKWITH ELECTRONICS for more information.
