Premier Metal

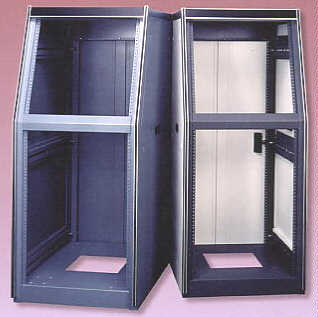

Trimline TSA Series - Sloped Front Panel Enclosures
30° and 45° matching wedge frames are available for multiple bay console configurations. click here

TVA Series - Sloped Front Panel Assembly		 Assemblies include 1 frame, 2 end panels, and rear door. General construction details are the same as the vertical assemblies.
  • Fixed front sloped panel mounting angles with tapped 10-32 EIA Standard spacing
  • Removable front cross piece
  • Lower front panel mounting angles adjustable front to rear
  • 10" x 10" cut-out for cable entry beneath base
  • Rear panel mounting angles adjustable rear to front
  • Quick release door hinge pins, spring loaded - top and bottom
  • All door features are the same as the vertical assembly door construction
  • Flush mounted end panels, outside removable with quick turn fasteners
  • Extruded, anodized aluminum door mounting angles, top and bottom

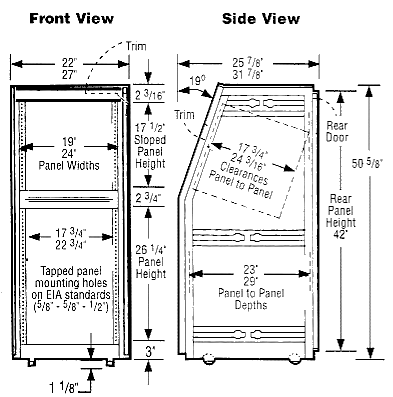

Sloped Front Enclosures
Basic Nominal Sizes

Ordering Instructions:

Select basic requirements for sloping panel height, width and depth in the dimensional drawings, then select the assembly model number from the tables which will include the frame, 1 pair of side panels, rear door, specified trim and color finish - assembled in 1 unit.
Modifications and accessories may be ordered as required

Assemblies: Sloped Front Panel Racks

Assemblies include frame with trim and 2 pairs of adjustable vertical panel mounting angles (tapped with 10-32 holes on EIA spacing) and fixed angles on the front sloping panel area; 2 outside removable side panels; reare mounted door with handle, lock and 2 keys. Units will be finished and assembled. Specify colors and trim combinations. (Door hinged at right unless otherwise specified).

Ordering Information
Sloped Panel
Height (Inches)		 19 Inch Panel Width
Panel-to-Panel Depth
(Vertical)		 24-Inch Panel Width
Panel-to-Panel Depth
(Vertical)
23 29 23 29
17 1/2 TSA-1719-23 TSA-1719-29 TSA-1724-23 TSA-1724-29
To order frames only, substitute prefix TSF in place of TSA. Frames will include trim with 2 pairs of tapped panel mounting angles.

Trim
The trim is mounted flush with the front outline of the frame. The top horizontal section is 2 1/8 inches wide, covering the face of the frame top. The vertical sections are 5/8 inch wide, mitred at the slope break. To order desired style, add as suffix to the assembly number.
  • 2B for Black grained inlay
  • 2W for Walnut, textured inlay
    • Side Panels: Supplied with TSA Series Assemblies
    The side panels are outside removable and mounted flush with the frame. The model number designates a pair (1 each, left and right).

    Ordering Information
    Sloped Panel
    Height (Inches)    		 Vertical
    Panel-to-Panel Depth
    2329
    17 1/2 TSP-1723 TSP-1729

    Rear Door: Supplied with TSA Series Assemblies
    Door mounts left hand or right hand with concealed hinges and is instantly removable. Magnetic closure and furnished with a recessed handle, lock and 2 keys.

    Ordering Information
    Rear Panel
    Height (Inches)    		 Frame Panel Width
    19 Inches 24 Inches
    42 TSD-4219 TSD-4224

    Note: Short door kit must be used when smaller door is being utilized. Catalog numbers SDK-19 for 19 inches or SDK-24 for 24-inch frames.
    Front Doors
    Doors for the front vertical panel opening are available. These doors mount onto the panel mounting angles. (See CD Series) click here

    Ordering Information

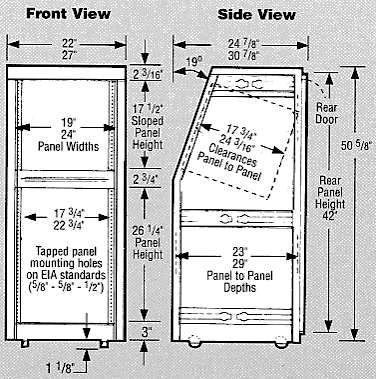

    Assemblies: Sloped Front Panel Racks
    Assemblies include frame and 2 pairs of adjustable vertical panel mounting angles (tapped with 10-32 holes on EIA spacing) and fixed angles on the front sloping panel area; 2 outside removable side panels; rear mounted door with handle, lock and 2 keys. Units will be finished and assembled. Specify colors. (Door hinged at right unless otherwise specified.)

    Sloped Panel
    Height (Inches)
         		 19 Inch Panel Width
    Panel-to-Panel Depth
    (Vertical)    		 24 inch Inch Panel Width
    Panel-to-Panel Depth
    (Vertical)
    23 Inches 29 Inches 23 Inches 29 Inches
    17 1/2 SSA-1719-23 SSA-1719-29 SSA-1724-23 SSA-1724-29
    To order frames only, substitute prefix SSF in place of SSA. Frames will include trim with 2 pairs of tapped panel mounting angles.

    Side Panels: Supplied with SSA Series Assemblies
    The side panels are outside removable and mounted flush with the frame.The model number designates a pair (1 each, left and right).

    Sloped Panel
    Height (Inches)    		 Vertical
    Panel-to-Panel Depth
    23 Inches 29 Inches
    171/2 TSP-1723 TSP-1729

    Ordering Instructions

    Select basic requirements for sloping panel height, width and depth in the dimensional drawings, then select the assembly model number from the tables which will include the frame, 1 pair of side panels, rear door, specified trim and color finish - assembled in one unit.
    Modifications and accessories may be ordered as required

    Rear Door: Supplied with SSA Series Assemblies
    Door mounts left hand or right hand with concealed hinges and is instantly removable. Magnetic closure and furnished with a recessed handle, lock and 2 keys.

    Note: Short door kit must be used when smaller door is being utilized. Catalog numbers SDK-19 for 19 inches or SDK-24 for 24-inch frame.

    Sloped Panel
    Height (Inches)    		 Frame Panel
    Width
    19 Inches 24 Inches
    42 TSD-4219 TSD-4224
    Front Doors
    Doors for the front vertical panel opening are available. These doors mount onto the panel mounting angles. (See CD Series) click here
