Power Dynamics, Inc.

High Density, Right Angle, P.C.B., 5.0mm Footprint
PDI-15RH-5

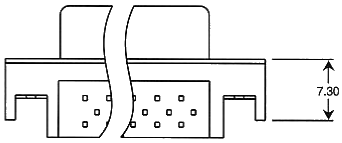

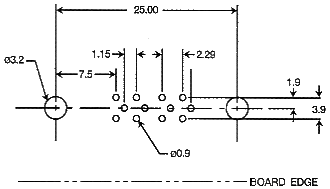

	P.C.B. Layout Top View

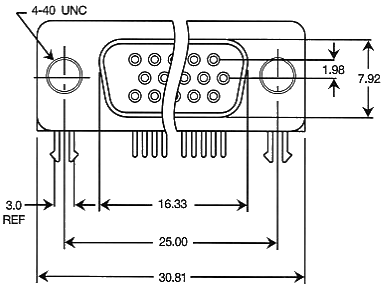

PDI-15RH (Shown)
P.C.B. Layout 15 Position Female	P.C.B. Layout 26, 44, 62 Position Female

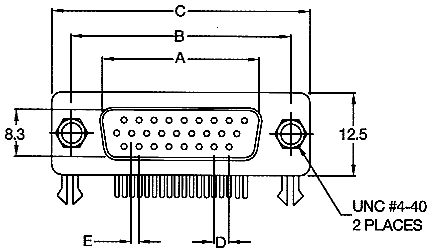

Number of Pins   15 26 44 62 A 16.30 24.60 38.30 54.80 B 25.00 33.30 47.10 63.50 C 30.80 39.20 53.10 69.40 D 2.29 2.29 2.29 2.41 E 1.145 1.145 1.145 1.205 F 7.04 6.88 6.88 7.00
PDI-15SH-J (Shown)
P.C.B. Layout 15 Position Female	P.C.B. Layout 26, 44, 62 Position Female

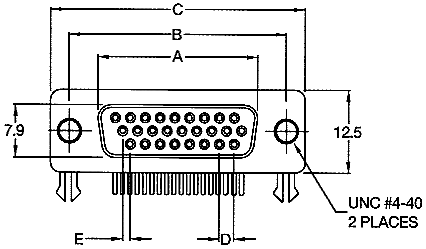

Number of Pins   15 26 44 62 A 16.92 25.25 38.96 55.42 B 25.00 33.30 47.10 63.50 C 30.80 39.20 53.10 69.40 D 2.29 2.29 2.29 2.41 E 1.145 1.145 1.145 1.205 F 7.04 6.88 6.88 7.00
Click here for Specifications
