BlockMaster
Features:
|
PA Series
|
| Materials (All Series) | |
|---|---|
| Housing: | Polyamide 6,6 (UL94V-2) |
| Terminal: | Zinc alloy, Tin plated |
| Screw: | Steel, yellow chromated |
| Positions Available: | 2 to 12 |
| Temperature range: | -35°C to +105°C |
| PA8DS Electrical | |
| Current: | 7A @600V |
| Wire range: | 18 to 20 Sol |
| Wire section(mm2): | 1.5mm2 |
| Centerline spacing: | 8mm |
| Wire hole size: | ø2.7mm |
| Mounting holes: | ø2.9mm |

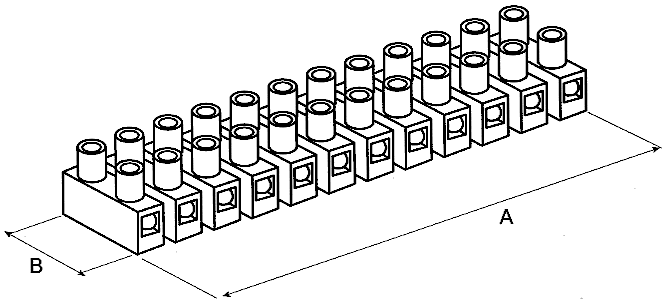

| Dimension A: | = 95.8mm |
| Dimension B: | = 16.3mm |
| PA10DS Electrical | |
| Current: | 20A @600V |
| Wire range: | 14 to 18 AWG |
| Wire section (mm2): | 2.5mm2 |
| Centerline spacing: | 10mm |
| Wire hole size: | ø3.2mm |
| Mounting holes: | ø3.6mm |
| Dimension A: | = 117.2mm |
| Dimension B: | =20.1mm |
| PA12DS Electrical | |
| Current: | 35A @600V |
| Wire range: | 10 to 18 AWG |
| Wire section(mm2): | 6mm2 |
| Centerline spacing: | 12mm |
| Wire hole size: | ø3.9mm |
| Mounting holes: | ø3.8mm |
| Dimension A: | = 140.5mm |
| Dimension B: | = 23.8mm |
| PA14DS Electrical | |
| Current: | 50A @ 600V |
| Wire range: | 8 to 20 AWG |
| Wire section(mm2): | 10mm2 |
| Centerline spacing: | 14mm |
| Wire hole size: | ø4.8mm |
| Mounting holes: | ø4.3mm |
| Dimension A: | = 158mm |
| Dimension B: | = 25.6mm |
| Style | Front | Side | Approvals |
|---|---|---|---|
| 8 8mm |
 |
 |
 |
| 10 10mm |
 |
 |
 |
| 12 12mm |
 |
 |
 |
| 14 14mm |
 |
 |
 |
