Hurst Manufacturing


MB Series Direct Current Motor KD Series

DIRECT CURRENT MOTORS:

HIGH EFFICIENCY, PERMANENT MAGNET DC MOTORS

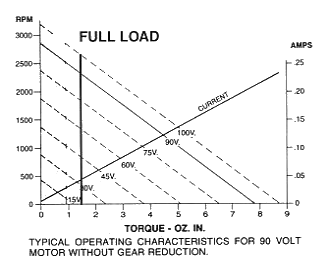

The Hurst DC motor is a brush type, permanent-magnet field, sub-fractional hp motor and is available with integeral gear unit. With the constant flux permanent magnet field, the speed torque and current-torque curves are linear, no field excitation is required, and reliability and efficiency are improved. Direct current motors are frequently used in applications where wide range speed control is required.

The KD, DC motor is of the permanent magnet type featuring high efficiency, no field supply requirement, low heat and linear speed-torque characteristics. Only two leads allow simple reversing.

The KD is furnished with a heavy duty integeral gear unit with a wide range of reductions available. Gearing is of "Heli-Spur" design with helical gears in the primary stage for quiet operation and hardened spur gears in the secondary stages. Mounting dimensions conform to NENA 2-11 standard.

Nominal voltage is 90 VDC. Armature windings can be furnished for different voltages. Consult Beckwith Electronics for operating characteristics at other voltages.
Motors are available for 6 VDC, 12 VDC, and 24 VDC.

Note: All performance data are based upon operation with uniform direct current. Rectified and non-filtered AC will give different performance values.

Quiet, Heavy Duty Permanent Magnet D.C. Motors
Model
Number
Ratio Track Speed
Range
(rpm)
Torque
(oz-in)
Typical Full
Load Current
(amps)
Input
Power**
(watts)
Armature
Temp. Rise
@
Full Load
Case
Length
Mtg. Stud
"A"
Length
No Load Full Load Low High
Discontinued
for reference only

KD3402-051

5:1 515-565 450-500 5.8 .050 .058 2 1/4 <50 3 9/32 1/2
KD3402-010 6:1 430-475 345-385 7 .050 .058 2 1/4 <50 3 9/32 1/2
KD3402-009 9:1 270-305 220-245 10 .048 .058 2 1/4 <50 3 9/32 1/2
KD3402-008 18:1 145-170 120-135 22.5 .048 .060 2 1/4 <50 3 9/32 1/2
KD3402-007 30:1 80-90 65-75 35 .048 .060 2 1/4 <50 3 9/32 1/2
KD3402-006 60:1 40-45 30-35 69 .048 .060 2 1/4 <50 3 7/16 11/32
KD3402-005 180:1 14-15 11.5-12.2 150* .039 .046 2 1/4 <50 3 7/16 11/32
KD3402-004 300:1 7.7-9.0 6.3-7.4 166* .032 .040 2 1/4 <50 3 7/16 11/32
KD3402-003 600:1 3.9-4.5 3.1-3.7 190* .025 .030 2 1/4 <50 3 7/16 11/32
KD3402-002 900:1 2.6-3.2 2.3-2.5 206* .022 .030 2 1/4 <50 3 7/16 11/32
KD3402-001 1800:1 1.1-1.5 .95-1.2 237* .018 .028 2 1/4 <50 3 7/16 11/32
*Maximum gear train loading.
Data applied when operated at 90 VDC at full load.
