SCS Series Efficient Low Cost Permanent Magnet Stepping Motors EFFICIENT LOW COST,
STEPPING MOTORS:

SCS Series
EFFICIENT LOW COST, PERMANENT MAGNET STEPPING MOTORS

Discontinued
for reference only

SCS Series stepping motors have approximately 66% greater torque yet are only 2/3" longer than the popular SAS Series motors (page 20). Rated torque for standard models is 12.5 oz. in. @ 5 p/s; Hi-Torque models: 16.5 oz. in. Dual sleeve bearings are standard but ball bearings as well as double ended shafts may be specified.

Also, voltages other than those shown below as well as 2-phase bipolar windings may be ordered.

NOTES
1. Standard SCS motors are supplied with 4-phase, bifilar windings (6 lead wires) for 5, 6, 12, 24 VDC operation. Click here for standard lead wire color code and switching sequence.
2. SCS Series motors can be driven with the Hurst Stepping Motor Controllers .

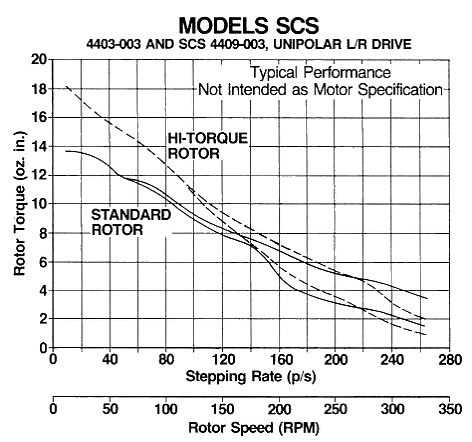

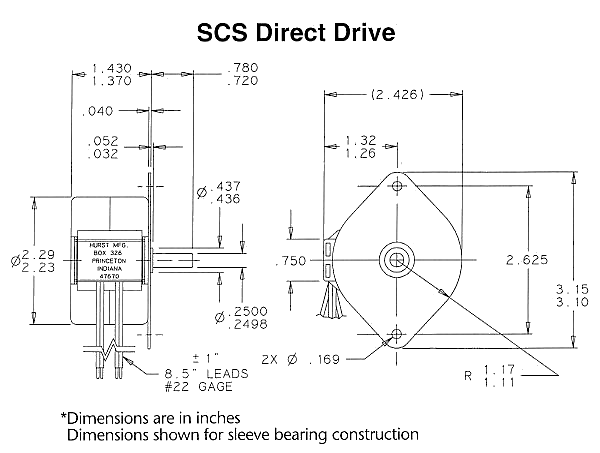

Direct Drive 7.5o Step Angle DC Stepping Motors
Model Part
Number
Stock Step
Angle
(degrees)
Steps
Per
Revolution
2-Phase
Holding
Torque
(oz-in)
Rated
Torque
@ 5 p/s
(oz-in)
Input
Power
(watts)
Nominal
Voltage
(volts)
Winding
Resistance
(ohms)
Rotor
Inertia
(oz-in)
Temp.
Rise
(oC)
Weight
(oz)
SCS 4403-001   7.5 48 18.5 12.5 8 5 6.1 .29 58 11.5
SCS 4403-002   7.5 48 18.5 12.5 8 6 8.8 .29 58 11.5
SCS 4403-003   7.5 48 18.5 12.5 8 12 35 .29 58 11.5
SCS 4403-004   7.5 48 18.5 12.5 8 24 140 .29 58 11.5
SCS 4409-003   7.5 48 20.5 16.5 8 12 35 .29 58 11.5
* Measured with no heat sink, motor in a holding mode with 2 phases energized.
Bold face listings indicate Hi-Torque rotor.
