| Standard Electronic Enclosurers |
|---|
Trimline TVA Series-Vertical Enclosures
Finished in all standard Premier colors. If not specified, Smoke Blue Textured (Sandtex) will be furnished.

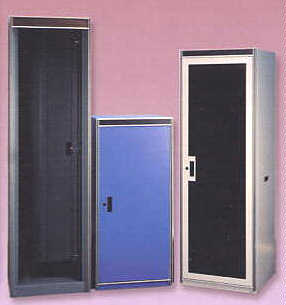

Typical Trimline TVA Series enclosures shown with plexiglass and painted metal doors.
30° and 45° matching wedge frames are available for multiple bay console configurations. |
PT Series Pagoda Tops
available on special order | |
|---|

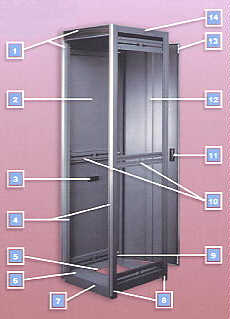

TVA Series Vertical Assembly Construction Details
Photo shows one frame, one end panel, rear door |
|---|
 |
- Trim: extruded anodized aluminum with textured vinyl inlays provide 1" recess for door mounting or panel area
- Outside removable flush end panels (16 gauge)
- Recessed hand grip for panel removal
- 2 pr. panel mounting angles, fully adjustable front to rear with tapped 10-32 holes on EIA & WE Standards spacing (12 gauge)
- 10" x 10" cut-out for cable entry beneath base
- Recessed caster mounting holes
- 1 piece formed steel base provides for heavy equipment mounting area and concealed
caster mounting (14 gauge)
- Formed steel uprights (14 gauge) provide 1/2" recess to panel mounting angles
- Quick release, spring loaded door hinges (top and bottom)
- Horizontal cross-brace and panel mounting angle support
- Keyed lock with flush handle
- Door stiffener channel
- Magnetic closure
- 1 piece solid top for extra rigidity and squareness (14 gauge)
|
|---|

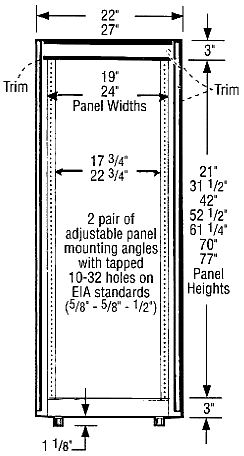

Front View |

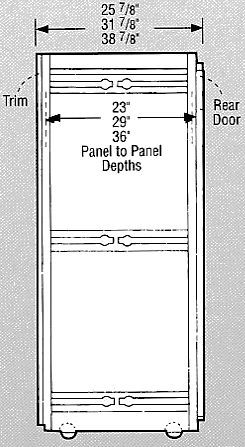

Side View |
|---|
| Ordering Information |
|---|
Assemblies
Assemblies include frame with trim and 2 pairs of adjustable panel mounting angles (tapped with 10-32 holes on EIA spacing); 2 outside removable side panels; rear mounted door with handle, lock and 2 keys. (Door hinged right unless otherwise specified.) |
Vertical Panel
Height (Inches) | 19" Panel Width
Panel to Panel Depth (Inches) |
|---|
| 23 | 29 | 36 |
|---|
| 21 |
TVA-2119-23 |
TVA-2119-29 |
TVA-2119-36 |
| 31 1/2 |
TVA-3119-23 |
TVA-3119-29 |
TVA-3119-36 |
| 42 |
TVA-4219-23 |
TVA-4219-29 |
TVA-4219-36 |
| 52 1/2 |
TVA-5219-23 |
TVA-5219-29 |
TVA-5219-36 |
| 61 1/4 |
TVA-6119-23 |
TVA-6119-29 |
TVA-6119-36 |
| 70 |
TVA-7019-23 |
TVA-7019-29 |
TVA-7019-36 |
| 77 |
TVA-7719-23 |
TVA-7719-29 |
TVA-7719-36 |
| |
| 24 Inch Panel Width |
|---|
| 21 |
TVA-2124-23 |
TVA-2124-29 |
TVA-2124-36 |
| 31 1/2 |
TVA-3124-23 |
TVA-3124-29 |
TVA-3124-36 |
| 42 |
TVA-4224-23 |
TVA-4224-29 |
TVA-4224-36 |
| 52 1/2 |
TVA-5224-23 |
TVA-5224-29 |
TVA-5224-36 |
| 61 1/4 |
TVA-6124-23 |
TVA-6124-29 |
TVA-6124-36 |
| 70 |
TVA-7024-23 |
TVA-7024-29 |
TVA-7024-36 |
| 77 |
TVA-7724-23 |
TVA-7724-29 |
TVA-7724-36 |
|
|---|
Trim Numbers
Added as suffix to assembly number. Includes vertical and horizontal members with vinyl inlay, complete and installed on frame.
|
 |
|---|
5/8 Inch Vertical
Trim Width |
Horizontal 2 1/8 Inch* |
Horizontal 3 Inch |
|---|
| Black Vinyl -2B | Walnut Vinyl-2W | Black Vinyl-3B | Walnut Vinyl-3W |
| * 2 1/8 Inch must be specified for front door installation. |
|
|---|
Side Panels (Supplied with TVA Series Assemblies)
Side panels are flush mounted, outside removable with recessed hand grip. Interchangeable left or right. Available louvred or slotted at additional cost. |
| Ordering Information |
|---|
Frame Vertical
Panel Height
(Inches) | Frame Panel to Panel Depth (Inches) |
|---|
| 23 | 29 | 36 |
|---|
| 21 |
TVP-2123 |
TVP-2129 |
TVP-2136 |
| 31 1/2 |
TVP-3123 |
TVP-3129 |
TVP-3136 |
| 42 |
TVP-4223 |
TVP-4229 |
TVP-4236 |
| 52 1/2 |
TVP-5223 |
TVP-5229 |
TVP-5236 |
| 61 1/4 |
TVP-6123 |
TVP-6129 |
TVP-6136 |
| 70 |
TVP-7023 |
TVP-7029 |
TVP-7036 |
| 77 |
TVP-7723 |
TVP-7729 |
TVP-7736 |
|
|---|
Doors (Rear mounted door supplied with TVA Series Assemblies)
Mounts left hand or right hand, front or rear with concealed hinges and is instantly removable. Magnetic catches on closure side. Furnished with a recessed handle, lock and 2 keys. |
 | Note: Short door kit must be used when smaller door is being used. Catalog numbers SDK-19 for 19 inch or SDK-24 for 24 inch frames. |
| Ordering Information |
|---|
Frame Vertical
Panel Height
(Inches) |
Frame Panel Width (Inches) |
Plexiglass Frame Panel Width (Inches) |
|---|
| 19 | 24 | 19 | 24 |
|---|
| 21 |
TVD-2119 |
TVD-2124 |
TVD-P-2119 |
TVD-P-2124 |
| 31 1/2 |
TVD-3119 |
TVD-3124 |
TVD-P-3119 |
TVD-P-3124 |
| 42 |
TVD-4219 |
TVD-4224 |
TVD-P-4219 |
TVD-P-4224 |
| 52 1/2 |
TVD-5219 |
TVD-5224 |
TVD-P-5219 |
TVD-P-5224 |
| 61 1/4 |
TVD-6119 |
TVD-6124 |
TVD-P-6119 |
TVD-P-6124 |
| 70 |
TVD-7019 |
TVD-7024 |
TVD-P-7019 |
TVD-P-7024 |
| 77 |
TVD-7719 |
TVD-7724 |
TVD-P-7719 |
TVD-P-7724 |
Note: For use as front door, specify 2 1/8
inch trim on assembly model and modification No. 017 |
|
|---|

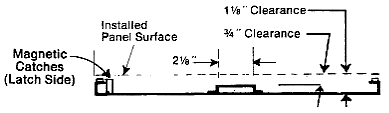

Plexiglass Doors (For use as front door, specify 2 1/8 inch trim on frame)
1/4 inch thick plexiglass front surface permits viewing of instrumentation through closed door, retaining all the features of the standard trimline door, such as: quick release hinges, magnetic closure, keyed lock and flush handle. Smoke Gray is standard. Other colors available. |
 |
|---|
SVA-Vertical Assemblies
The Spartan Series offers all the basic requirements for housing electronic systems in a rugged, economical package designed with simple, clean lines. The Spartan Series incorporates, as standard, provisions for mounting electronic equipment and accessories required in the majority of systems packaging. Standard modifications are readily available to customize enclosure packaging for your complete needs.
Finished in all standard Premier colors. If not specified, Smoke Blue Textured (Sandtex) will be furnished.
30° and 45° matching wedge frames are available for multiple bay console configurations. |
| SVA Series Vertical Assembly: |
|---|
| Construction Details
(1 frame, 2 end panels, rear door) All features shown are standard in the Spartan SVA Series. Welded, formed steel construction.
- Outside removable flush end panels (16 gauge)
- Recessed hand grip for panel removal
- 2 pairs of panel mounting angles, fully adjustable front-to-rear with tapped 10-32 holes on EIA Standard spacing (12 gauge)
- 10 x 10 inch cut-out for cable entry beneath base
- Recessed caster mounting holes
- 1 piece formed steel base provides for heavy equipment mounting area and concealed caster mounting (14 gauge)
- Formed steel uprights (14 gauge) provide 1/2 inch recess to panel mounting angles
- Magnetic closure
- Quick release, spring loaded door hinges (top and bottom)
- Horizontal cross-brace and panel mounting angle supports
- Keyed latch and recessed pull handle
- Door stiffener channel
- 1 piece solid top for extra rigidity and squareness (14 gauge)
|
|---|

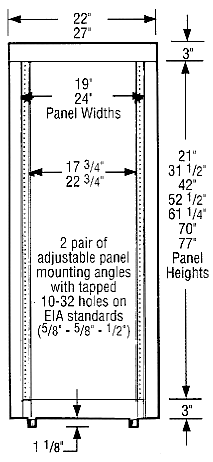

Front View |
Side View |
|---|
Ordering Information
Assemblies
Assemblies include frame with 2 pairs of adjustable panel mounting angles (tapped with 10-32 holes on EIA spacing); 2 outside removable side panels; rear mounting door with handle, lock and 2 keys. Unit will be finished and assembled. Specify colors. (Door hinged right will be furnished unless otherwise specified.) |
Vertical Panel
Height (Inches) | 19" Panel Width
Panel to Panel Depth (Inches) |
|---|
| 23 | 29 | 36" |
|---|
| 21 |
SVA-2119-23 |
SVA-2119-29 |
SVA-2119-36 |
| 31 1/2 |
SVA-3119-23 |
SVA-3119-29 |
SVA-3119-36 |
| 42 |
SVA-4219-23 |
SVA-4219-29 |
SVA-4219-36 |
| 52 1/2 |
SVA-5219-23 |
SVA-5219-29 |
SVA-5219-36 |
| 61 1/4 |
SVA-6119-23 |
SVA-6119-29 |
SVA-6119-36 |
| 70 |
SVA-7019-23 |
SVA-7019-29 |
SVA-7019-36 |
| 77 |
SVA-7719-23 |
SVA-7719-29 |
SVA-7719-36 |
| |
| 24 Inch Panel Width |
|---|
| 21 |
SVA-2124-23 |
SVA-2124-29 |
SVA-2124-36 |
| 31 1/2 |
SVA-3124-23 |
SVA-3124-29 |
SVA-3124-36 |
| 42 |
SVA-4224-23 |
SVA-4224-29 |
SVA-4224-36 |
| 52 1/2 |
SVA-5224-23 |
SVA-5224-29 |
SVA-5224-36 |
| 61 1/4 |
SVA-6124-23 |
SVA-6124-29 |
SVA-6124-36 |
| 70 |
SVA-7024-23 |
SVA-7024-29 |
SVA-7024-36 |
| 77 |
SVA-7724-23 |
SVA-7724-29 |
SVA-7724-36 |
|
|---|
Side Panels: Supplied with SVA Series Assemblies
Side panels are flush mounted, outside removable with recessed hand grip. Interchangeable left or right. Available louvred or slotted at additional cost. |
| Ordering Information |
|---|
Frame Vertical
Panel Height
(Inches) | Frame Panel - to - Panel Depth (Inches) |
|---|
| 23 | 29 | 36 |
|---|
| 21 |
TVP-2123 |
TVP-2129 |
TVP-2136 |
| 31 1/2 |
TVP-3123 |
TVP-3129 |
TVP-3136 |
| 42 |
TVP-4223 |
TVP-4229 |
TVP-4236 |
| 52 1/2 |
TVP-5223 |
TVP-5229 |
TVP-5236 |
| 61 1/4 |
TVP-6123 |
TVP-6129 |
TVP-6136 |
| 70 |
TVP-7023 |
TVP-7029 |
TVP-7036 |
| 77 |
TVP-7723 |
TVP-7729 |
TVP-7736 |
|
|---|
Doors: Rear mounted door supplied with SVA Series assemblies
Mounts left hand or right hand, front or rear with concealed hinges and is instantly removable. Magnetic closure. Furnished with a recessed handle, lock and 2 keys. |
| Note: Short door kit must be used when smaller door is being used. Catalog numbers SDK-19 for 19 inch or SDK-24 for 24 inch frames.
|
| Ordering Information |
|---|
Frame Vertical
Panel Height
(Inches) |
Frame Panel Width (Inches) |
Plexiglass Frame Panel Width (Inches) |
|---|
| 19 | 24 | 19 | 24 |
|---|
| 21 |
TVD-2119 |
TVD-2124 |
TVD-P-2119 |
TVD-P-2124 |
| 31 1/2 |
TVD-3119 |
TVD-3124 |
TVD-P-3119 |
TVD-P-3124 |
| 42 |
TVD-4219 |
TVD-4224 |
TVD-P-4219 |
TVD-P-4224 |
| 52 1/2 |
TVD-5219 |
TVD-5224 |
TVD-P-5219 |
TVD-P-5224 |
| 61 1/4 |
TVD-6119 |
TVD-6124 |
TVD-P-6119 |
TVD-P-6124 |
| 70 |
TVD-7019 |
TVD-7024 |
TVD-P-7019 |
TVD-P-7024 |
| 77 |
TVD-7719 |
TVD-7724 |
TVD-P-7719 |
TVD-P-7724 |
|
|---|
Plexiglass Doors
One-quarter inch thick plexiglass front surface permits viewing of instrumentation through closed door, retaining all the features of the standard Trimline door, such as: quick release hinges, magnetic closure, keyed lock and recessed handle. Smoke Gray standard. Other shades available. |
| Thriftline TLA Series |
|---|

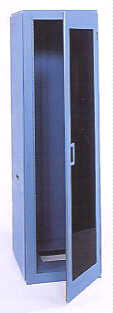

The new Premier TLA series provides users with a perfect blend of thrift, style and functionality. |
Features
- An affordable alternative without loss of style or quality
- Smoked glass front door for complete visability
- Removable side panels allow for multi-cabinet ganging
- Rear mounted door for total accessibility
- Available in 70 or 77 inch heights for 19 and 24 inch panel widths and 24 or 30 inch depths
- Designed to accept cabling through bottom entry port. 10" x 10"
- Useable with full range of Premier Accessories
- Optional door locks available
- Heavy duty horizontal cross-brace and panel mounting angle supports
- Slotted top for optional fan mounting
|
|---|
Cabinet uprights are manufactured from 14-gauge cold-rolled steel for superior load handling. And, because the TLA Series is available with a Smoked plexiglass front door, you'll have total visability of the operating performance of your equipment.
Support Large Loads
The TLA Series supports static vertical loads in excess of 1,300 pounds. A welded steel frame is complemented by a series of 14-gauge heavy-duty horizontal cross braces for superior rigidity. Two pairs of panel mounting angles constructed of 12-gauge steel are fully adjustable front-to-rear.
Hundreds of Accessories
Pick from a full range of accessories described in our main catalog. These include steel and aluminum panels, shelving, work-tops, slides, fans, blowers, power strips, casters, and much more.
What You Get
Assemblies include a frame with two pairs of adjustable panel mounting angles. These mounting angles are EIA spaced and tapped to receive 10-32 hardware. Removable side panels and a rear door with a recessed latch are also provided. TLA Series cabinets are shipped fully finished and assembled. Doors are hinged right unless other wise specified.
|
 |
|---|
 |
|---|

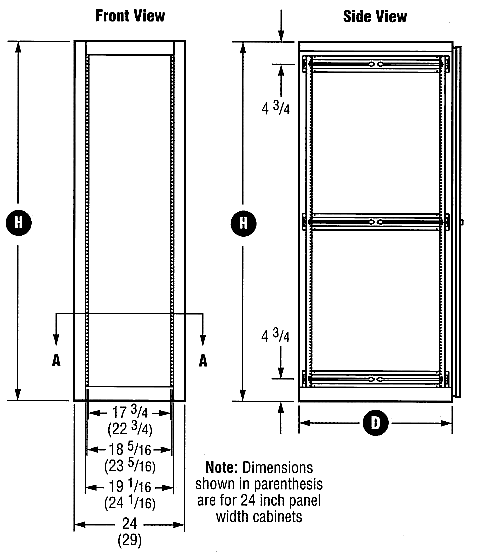

| Model Number | H | D | V.P. Space | H.P. Space |
|---|
| TLA7019-23 |
76 1/8 |
24 |
70 1/8 |
19 1/16 |
| TLA7019-29 |
76 1/8 |
30 |
70 1/8 |
19 1/16 |
| TLA7719-23 |
83 1/8 |
24 |
77 1/8 |
19 1/16 |
| TLA7719-29 |
83 1/8 |
30 |
77 1/8 |
19 1/16 |
| TLA7024-23 |
76 1/8 |
24 |
70 1/8 |
24 1/16 |
| TLA7024-29 |
76 1/8 |
30 |
70 1/8 |
24 1/16 |
| TLA7724-23 |
83 1/8 |
24 |
77 1/8 |
24 1/16 |
| TLA7724-29 |
83 1/8 |
30 |
77 1/8 |
24 1/16 |
|
|---|
| Cabinet Assemblies |
|---|
Vertical
Panel
Height
(Inches) |
19 and 24 Inch Panel Widths |
Panel
Width
(Inches) |
|---|
| Panel to Panel Depth (Inches) |
|---|
| 23 | 29 |
|---|
| 70 |
TLA-7019-23 |
TLA-7019-29 |
19 |
| 77 |
TLA-7719-23 |
TLA-7719-29 |
19 |
| 70 |
TLA-7024-23 |
TLA-7024-29 |
24 |
| 77 |
TLA-7724-23 |
TLA-7724-29 |
24 |
| To order frames only, substitute TLF in place of TLA. Frame will include 2 pairs of tapped panel mounting angles |
|
|---|
Plexiglass Doors
1/8" Thick Plexiglass Smoke Gray is standard. |
|---|
Frame Vertical
Panel Height
(Inches) |
|---|
| Frame Panel Width (Inches) |
|---|
| 19 | 24 |
|---|
| 70 |
TLD-P-7019 |
TLD-P-7024 |
| 77 |
TLD-P-7719 |
TLD-P-7724 |
|
|---|
Side Panels
Supplied with TLA Series Assemblies
Side panels are
outside removable with recessed hand grip.
Available louvered or slotted at additional cost. Sold in pairs. |
Frame Vertical
Panel Height
(Inches) |
|---|
| Panel to Panel Depth (Inches) |
|---|
| 23 | 29 |
|---|
| 70 |
TLP-7023 |
TLP-7029 |
| 77 |
TLP-7723 |
TLP-7729 |
|
|---|
Doors
Rear mounted supplied with TLA series assemblies.
Mounts left or right. If not specified, doors are hinged right. |
Frame Vertical
Panel Height
(Inches) |
|---|
| Frame Panel Width (Inches) |
|---|
| 19 | 24 |
|---|
| 70 |
TLD-7019 |
TLD-7024 |
| 77 |
TLD-7719 |
TLD-7724 |
|
|---|
Welded Cabinet Rack
for 19 and 24 Inch Rack Panels - 18 and 24 Inches Deep |
|---|
 | Rigidly constructed of 16-gauge steel with a 12-gauge steel bottom and welded throughout. Supplied with two pairs of 12-gauge steel panel mounting angles fully adjustable front to rear with clearance holes on E.I.A. spacing. 10-32 x 3/4 inch screws and captive nuts are furnished.
- Louvered rear doors are hung on sturdy slip-jointed hinges and closed with a chrome handle. Locking handle with two keys available at additional cost.
- Mounting holes for casters are provided and a rectangular cut-out is made in the bottom for cables, etc.

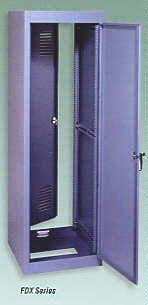

- FDX Series are furnished with locking handle and 2 keys on front door.
- Accommodates accessories, fans, blowers, slides, etc. Round hole and five mounting holes on top of frame to accommodate exhaust (EF Series) fans available at additional cost.
- All racks are supplied without louvers on sides unless specified. Louvers available at additional cost.
- Finished in Smoke Blue "Sandtex". Other colors are available on request.
|
|---|
| 19 Inch Panel Widths |
|---|
Overall
Height and Width
(Inches) |
Panel Space
Height and Width
(Inches) |
18 Inch Deep Racks |
24 Inch Deep Racks |
|---|
With
Rear Door Only
Catalog Number |
With Front and
Rear Doors
Catalog Number |
With
Rear Door Only
Catalog Number |
With Front and
Rear Doors
Catalog Number |
| 42 7/8 x 22 |
36 3/4 x 19 |
RMX-3619 |
FDX-3619 |
RMX-3619-24 |
FDX-3619-24 |
| 48 1/8 x 22 |
42 x 19 |
RMX-4219 |
FDX-4219 |
RMX-4219-24 |
FDX-4219-24 |
| 67 3/8 x 22 |
61 1/4 x 19 |
RMX-6119 |
FDX-6119 |
RMX-6119-24 |
FDX-6119-24 |
| 76 1/8 x 22 |
70 x 19 |
RMX-7019 |
FDX-7019 |
RMX-7019-24 |
FDX-7019-24 |
| 83 1/8 x 22 |
77 x 19 |
RMX-7719 |
FDX-7719 |
RMX-7719-24 |
FDX-7719-24 |
| Chassis Support Angles |
CSA-16 |
CSA-22 |
| Shelves |
S-18-22 |
S-22-22 |
| Slide Length |
14 Inch |
20 Inch |
|
|---|
| 24 Inch Panel Widths |
|---|
Overall
Height and Width |
Panel Space
Height and Width
(Inches) |
24 Inch Deep Racks |
|---|
With
Rear Door Only
Catalog Number |
With Front and
Rear Doors
Catalog Number |
| 48 1/8 x 27 |
42 x 24 |
RMX-2742 |
FDX-2742 |
| 67 3/8 x 27 |
61 1/4 x 24 |
RMX-2761 |
FDX-2761 |
| 76 1/8 x 27 |
70 x 24 |
RMX-2770 |
FDX-2770 |
| 83 1/8 x 27 |
77 x 24 |
RMX-2777 |
FDX-2777 |
| Chassis Support Angles |
CSA-22 |
| Shelves |
S-27-22 |
| Slide Length |
20 Inch |
|
|---|
|
Knock Down Cabinet Racks
- Rigidly constructed of 16-gauge steel.
- Racks are shipped knocked down with all necessary bolts for assembly.
- All units supplied with louvered rear doors hung on sturdy slip-jointed hinges and closed by a satin chrome handle. Locking handle with two keys is available at an additional cost.
Sides louvered at top and bottom.
- Panel mounting angles for the R Series are 12-gauge steel, welded at front of cabinet to form a 5/16 inch panel recess. Holes are drilled and tapped for 10-32 screws on E.I.A. spacing. 10-32 screws are furnished.
- Holes provided in bottom to accomodate casters.
- Finished in Smoke Blue Textured "Sandtex". Other colors are available on request.
- Additional modifications and accessories are available. Call Beckwith Electronics for details.
|
|---|
Overall
Height
(Inches) |
Panel
Space
(Inches) |
Use slide
Lengths*
(Inches) |
R Series
Catalog
Number |
| 41 7/8 |
36 3/4 x 19 |
16 |
R-3619 |
| 47 1/8 |
42 x 19 |
16 |
R-4219 |
| 66 3/8 |
61 1/4 x 19 |
16 |
R-6119 |
| 82 1/8 |
77 x 19 |
16 |
R-7719 |
| *Use Slide Adapter Kit (Cat. No. SAK-35) for rear mounting. |
|
|---|
 | Front Doors
1 1/4 Inch Deep to Fit Standard 19 Inch R Series Cabinets
Constructed from 1 piece of 16-gauge steel. Two concealed piano hinges are provided with holes punched to accommodate EIA spacings and are made to fit on top of the panels. Locking chrome handle with two keys supplied on FD-310-313 models. All necessary bolts furnished for easy assembly. All doors are 20 1/2 inch wide x 1 1/4 inch deep. Finished in Smoke Blue Textured "Sandtex". Also available in all Premier standard colors. Please specify. |
|---|
Overall
Height
(Inches) |
Front Doors
Will Fit Rack Number |
Catalog
Number |
| 36 7/8 |
R-3619 |
FD-310 |
| 42 1/8 |
R-4219 |
FD-311 |
| 61 3/8 |
R-6119 |
FD-312 |
| 77 1/8 |
R-7719 |
FD-313 |
|
|---|
