Accessories |
|---|
 |
|---|
| Chassis Support Angles and Shelves |
|---|
 |  |
|---|
Standard Series

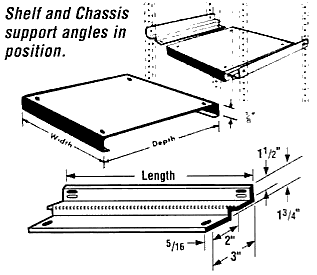

These Light Gray support angles are manufactured in 14-gauge steel and are designed to support S Series shelves. They mount to side legs of panel mounting angles. |
| Equipment Shelves |
|---|
Rack
Panel
Width
(Inches) |
Rack Panel - to - Panel Depth |
17"
Catalog
Number |
23"
Catalog
Number |
26"
Catalog
Number |
29"
Catalog
Number |
| 19 |
TES-1917 |
TES-1923 |
TES-1926 |
TES-1929 |
| 24 |
TES-2417 |
TES-2423 |
TES-2426 |
TES-2429 |
|
| Equipment Shelves for FDX-RMX Series |
|---|
Rack
Panel
Width
(Inches) |
Rack Panel - to - Panel Depth |
19"
Catalog
Number |
24"
Catalog
Number |
| 19 |
S-18-22 |
S-22-22 |
| 24 |
|
S-27-22 |
|
|---|
| Support Angles |
|---|
Actual
Length
(Inches) |
To fit
Panel - to - Panel
Rack Depth (Inches) |
Catalog
Number |
| 16 1/8 |
17 |
TCS-17 |
| 22 1/8 |
23 |
TCS-23 |
| 25 1/8 |
26 |
TCS-26 |
| 28 1/8 |
29 |
TCS-29 |
|
| Support Angles for "S" Shelves |
|---|
Actual
Length
(Inches) |
To fit
Panel - to - Panel
Rack Depth (Inches) |
Catalog
Number |
| 14 1/8 |
18 |
CSA-16 |
| 20 1/8 |
24 |
CSA-22 |
|
|---|
 | |
|---|
| Top Filler Panels | Leveling legs |
|---|
| Used to fill top opening between top ganged frames if side panels are omitted. |
| Ordering Information |
|---|
For Panel
-to-Panel
Frame Depth
(Inches) |
Use
Filler Panel
Catalog
Number |
| 17 |
TFP-17 |
| 23 |
TFP-23 |
| 26 |
TFP-26 |
| 29 |
TFP-29 |
| Trimline and Spartan Series
Rubber cushioned, swivel base levelers are non-marking, non-skid and absorb vibration. Cushions are 11/2 inch diameter and 5/8 inch thick. Adjusting stud is 1/2 - 13 thread. Set of (4) is supplied with mounting brackets and all necessary hardware to mount under Trimline or Spartan Base. Tested to 250 lbs. per leg.Catalog Number: TLL-250 (set of 4) |
|---|
| Sliding Drawers | Sliding Shelves |
|---|
| Welded, steel drawers are cradle mounted on full extension roller bearing slides with a disconnect feature. The suspension cradle mounts to the front panel mounting angles. |
Formica covered sliding shelves mount into cradle on full extension roller bearing slides with a disconnect feature. The cradle mounts to the front panel mounting angles. Shelves use 3 1/2 inch panel height. |
 |  |
|---|
| Front Panel Size |
Drawer Dimensions |
Catalog
Number |
Height
(Inches) |
Width
(Inches) |
Height
(Inches) |
Width
(Inches) |
Depth
(Inches) |
| 3 1/2 |
19 |
2 11/16 |
16 1/8 |
16 |
TDR-319 |
| 7 |
19 |
6 |
16 1/8 |
16 |
TDR-719 |
| 10 1/2* |
19 |
6 |
16 1/8 |
16 |
TDR-1019 |
| 3 1/2 |
24 |
2 11/16 |
21 1/8 |
16 |
TDR-324 |
| 7 |
24 |
6 |
21 1/8 |
16 |
TDR-724 |
| 10 1/2* |
24 |
6 |
21 1/8 |
16 |
TDR-1024 |
| *Keyed cam lock available on 10 1/2
inch panel sizes |
|
| Front Panel Size |
Shelf Size |
Catalog
Number |
Height
(Inches) |
Width
(Inches) |
Width
(Inches) |
Depth
(Inches) |
| 3 1/2 |
19 |
16 3/16 |
15 15/16 |
TWS-319 |
| 3 1/2 |
24 |
21 3/16 |
15 15/16 |
TWS-324 |
|
|---|
| Anti-Tipping Device | Ganging Kits |
|---|
| |
|---|
These pairs of extension bars mount to full depth of cabinet, extending one foot in front of cabinet to prevent tipping.
Note: Cannot be used without casters
(Catalog No. CA-5). Should be ordered with cabinet. | For multi-bay and console units. All hardware supplied.
Catalog Number: CGK-6 for ganging each
additional standard frame.
Catalog Number: CGK-7 for ganging one side of a wedge frame to a standard frame. |
| Ordering Information |
|---|
Panel - to - Panel
Rack Depth (Inches) |
Catalog
Number |
| 23 |
ATD-23 |
| 29 |
ATD-29 |
| 36 |
ATD-36 |
| |
|---|
| Sliding Keyboard Shelves |
|---|
 |
|---|
| Constructed of 16-gauge steel with a 5 1/4 inch hinged front panel. Top panel is 3 1/2 inches and hinges down when keyboard is in use. Supplied with a cylinder lock for securing in the closed position. |
| Ordering Information |
|---|
| For 19 Inch Panel Width |
For 24 Inch Panel Width |
Use Slide |
Width
(Inches) |
Depth
(Inches) |
Catalog
Number |
Width
(Inches) |
Depth
(Inches) |
Catalog
Number |
Catalog
Number |
| 16 3/4 |
15 7/8 |
RSK-1917 |
21 3/4 |
15 7/8 |
RSK-2417 |
SBB-100-16 |
| 16 3/4 |
217/8 |
RSK-1923 |
21 3/4 |
21 7/8 |
RSK-2423 |
SBB-100-22 |
| 16 3/4 |
23 7/8 |
RSK-1926 |
21 3/4 |
23 7/8 |
RSK-2426 |
SBB-100-26 |
| 16 3/4 |
27 7/8 |
RSK-1929 |
21 3/4 |
27 7/8 |
RSK-2429 |
SBB-100-28 |
Note:* Slides must be ordered separately.
Shorter shelves can be utilized by moving rear angles forward. |
|
|---|
| Cantilevered Shelves |
|---|
 |
|---|
| Constructed of 16-gauge steel. Utilizes 5 1/4 inches of panel space for mounting to front panel mounting angles. |
| Ordering Information |
|---|
| For 19 Inch Panel Width |
For 24 Inch Panel Width |
Width
(Inches) |
Depth
(Inches) |
Catalog
Number |
Width
(Inches) |
Depth
(Inches) |
Catalog
Number |
| 17 1/2 |
16 1/2 |
RSC-1917 |
22 1/2 |
16 1/2 |
RSC-2417 |
| 171/2 |
20 1/2 |
RSC-1920 |
22 1/2 |
20 1/2 |
RSC-2420 |
Note:* Slotted shelves available on special order - add S to Catalog Number
Example: RSC-1917-S. |
|
|---|
| Stationary Shelves |
|---|
 |
|---|
| Constructed of 16-gauge steel. Shelf mounts front and rear to inside leg of panel mounting angles. |
| Ordering Information |
|---|
| For 19 Inch Panel Width |
For 24 Inch Panel Width |
Width
(Inches) |
Depth
(Inches) |
Catalog
Number |
Width
(Inches) |
Depth
(Inches) |
Catalog
Number |
| 20 |
16 1/4 |
RSH-1917 |
25 |
161/4 |
RSH-2417 |
| 20 |
22 1/4 |
RSH-1923 |
25 |
22 1/4 |
RSH-2423 |
| 20 |
25 1/4 |
RSH-1926 |
25 |
25 1/4 |
RSH-2426 |
| 20 |
28 1/4 |
RSH-1929 |
25 |
28 1/4 |
RSH-2429 |
Note: Slotted shelves available - add S to Catalog Number
Example: RSH-1917-S
Shorter depth shelves can be utilized by moving rear angles forward. |
|
|---|
| Sliding Shelves |
|---|
 |
|---|
| Constructed of 16-gauge steel. 1 3/4 inch front panel, flush pull, and supplied with all necessary mounting hardware. |
| Ordering Information |
|---|
| For 19 Inch Panel Width |
For 24 Inch Panel Width |
Use Slide |
Width
(Inches) |
Depth
(Inches) |
Catalog
Number |
Width
(Inches) |
Depth
(Inches) |
Catalog
Number |
Catalog
Number |
| 16 3/4 |
15 7/8 |
RSS-1917 |
21 3/4 |
15 7/8 |
RSS-2417 |
SBB-100-16 |
| 16 3/4 |
21 7/8 |
RSS-1923 |
21 3/4 |
21 7/8 |
RSS-2423 |
SBB-100-22 |
| 16 3/4 |
23 7/8 |
RSS-1926 |
21 3/4 |
23 7/8 |
RSS-2426 |
SBB-100-26 |
| 16 3/4 |
27 7/8 |
RSS-1929 |
21 3/4 |
27 7/8 |
RSS-2429 |
SBB-100-28 |
Note:* Slides must be ordered separately.
Shorter shelves can be utilized by moving rear angles forward. |
|
|---|
| Extension Slides - Heavy Duty |
|---|
 |
|---|
- Quick disconnect (front, unhanded lever)
- High strength cold rolled steel
- Finish: Bright electro zinc
- Side space 1/2 inch (+1/16 - 0)
- Height 1 13/16 inches
- Three telescoping members allow full accessibility for instant servicing
- Supplied with all necessary mounting hardware
|
| Ordering Information |
|---|
Slide
Lengths
(Inches) |
Travel
Length
(Inches) |
Load
Rating
(Pounds) |
Catalog
Number |
| 13 25/32 |
14 |
110 |
SBB-100-14 |
| 15 3/4 |
16 |
107 |
SBB-100-16 |
| 19 11/16 |
20 |
96 |
SBB-100-20 |
| 2121/32 |
22 |
92 |
SBB-100-22 |
| 23 5/8 |
24 |
88 |
SBB-100-24 |
| 25 19/32 |
26 |
82 |
SBB-100-26 |
| 27 9/16 |
28 |
78 |
SBB-100-28 |
|
|---|
| Rapid Installation: For SBB Series Slides |
|---|
 |
|---|
- Mounts to tapped holes of front and rear panel mounting angles
- Simple adjustment of chassis slide assembly from outside of frame
- Supplied with SBB Series slides
|
