Power Dynamics, Inc.

Universal Serial Bus
USB-FA1RP31		PCB Layout (Top View)
USB-FA2RP31
		PCB Layout (Top View)
USB-FB1RP31		PCB Layout (Top View)
USB-FA1SP31
	PCB Layout (Top View)
USB-MA1SS31
USB-MB1SS31 Available in the A-Type (USB-MAISS31)	Top Shell	Bottom Shell
	Top Insulator	Bottom Insulator
USB Specifications
Material and Finish Insulator: PBT, UL 94V-0 rated Contact: Phosphor Bronze, Selective Gold over Nickel plated. Shell: Steel, Tin over Copper plated. Electrical Specifications Voltage Current Rating: 1A per contact, 30VAC (rms) Insulation Resistance: 100 M ohm @ 500V DC. Dielectric Withstanding Voltage: 750VAC for one minute. Contact Resistance: 30 m ohm max.

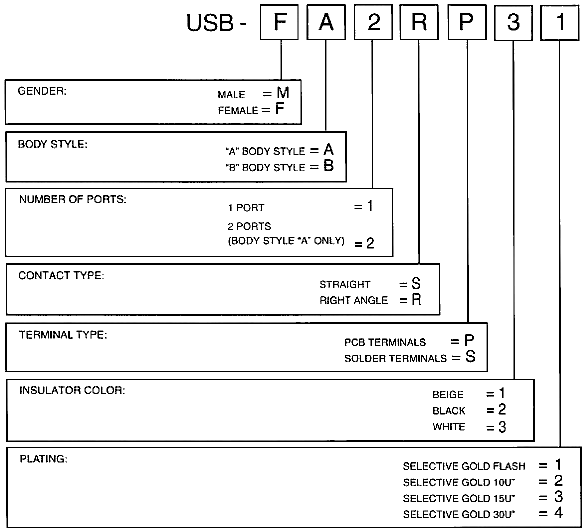

Ordering Code
IEEE 1394 Molded Cable Male to Male
Male to Male
Cable Worksheet Cable Length:___________________________________________cm   Cable Type/AWG:__________________________________________   Color:____________________________________________________
USB Type "A" Male to USB Type "B" Male
Cable Worksheet End A:___________________________________________________   End B:___________________________________________________   Cable Length:___________________________________________cm   Cable Type/AWG:__________________________________________   Color:____________________________________________________

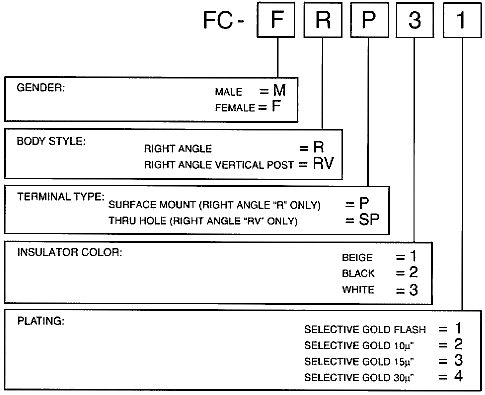

Ordering Code
Specifications
Material and Finish Insulator: PBT, UL 94V-0 rated Contact: Copper Alloy, Selective Gold over Nickel plated. Shell: Copper Alloy or Steel, Tin over Copper plated. Electrical Specifications Voltage Current Rating: 1A per contact, 30VAC (rms) Insulation Resistance: 100 M ohm @ 500V DC. Dielectric Withstanding Voltage: 500VAC for one minute. Contact Resistance: 30 m ohm max.
