Power Dynamics, Inc.

Material and Finish:
Material:Zinc Alloy
Thickness:Nickel: 40µ"
Material:Male: Brass
Female: Phosphor Bronze
Plating:Selective Gold over Nickel
Thickness:Selective Gold Flash over 30µ" Nickel base
Insulator:P.B.T. and Glass-fiber reinforced UL 94V-0

Electrical Specifications:
Rated Current:1A max.
Insulation Resistance:    5000 Megaohm min. @ 500 V
Contact Resistance:15 milliohm max.
Dielectric Withstanding Strength:5000 VAC for 1 minute
Temperature:-55°C to 105°C

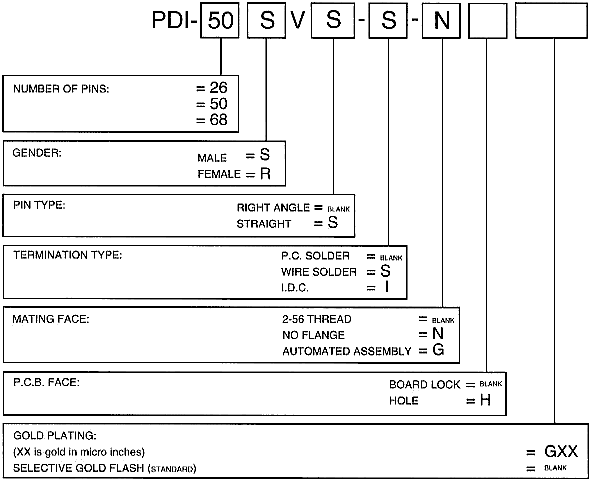

Example & Ordering Code

Specifications subject to change without notice.
