Right Angle, P.C.B., 7.2mm Footprint

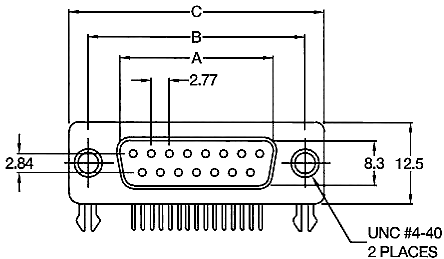

PDI-15R (Shown)

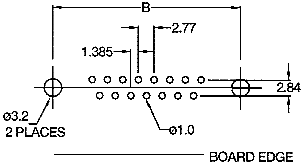

	P.C.B. Layout Top View
Number of Pins   9 15 25 37 A 16.30 24.60 38.30 54.80 B 25.00 33.30 47.10 63.50 C 30.80 39.20 53.10 69.40

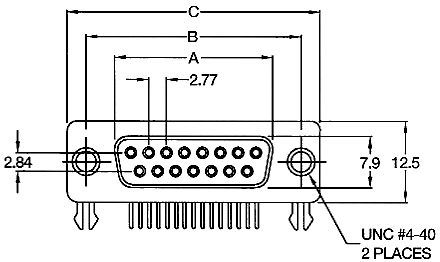

PDI-15S (Shown)

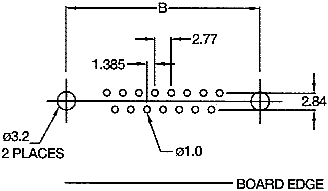

	P.C.B. Layout Top View
Number of Pins   9 15 25 37 A 16.92 25.25 38.96 55.42 B 25.00 33.30 47.10 63.50 C 30.80 39.20 53.10 69.40
