Power Dynamics, Inc.

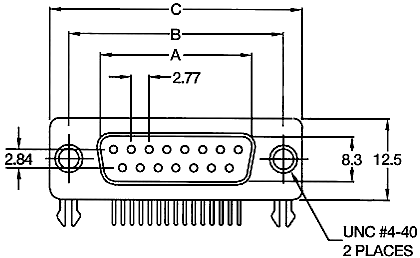

Right Angle, P.C.B., 13.84mm Footprint
PDI-25R-13-J
(Shown)

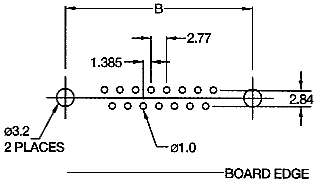

P.C.B. Layout
Top View
Number of Pins
 9152537
A16.3024.6038.3054.80
B25.0033.3047.1063.50
C30.8039.2053.1069.40

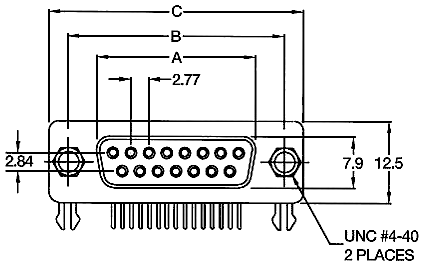

PDI-25S-13L
(Shown)

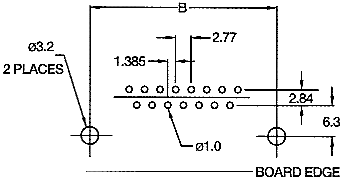

P.C.B. Layout
Top View
Number of Pins
 9152537
A16.9225.2538.9655.42
B25.0033.3047.1063.50
C30.8039.2053.1069.40


Click here for Specifications

Specifications subject to change without notice. Dimensions in mm.
