Power Plugs

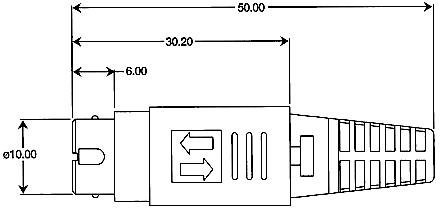

DP-002
Specifications DP-002
Material and Finish: Housing: (Body & Cover) Material: P.B.T.; Valox 420-SEO Rating: UL 94V-0 Strain Relief: Material: PVC Contacts: Terminals A & B:     Material: Brass     Plating: Nickel Earth Terminal:     Material: Brass     Plating: Nickel Terminal C:     Material: Brass     Plating: Nickel Electrical Specifications: Rated Current: Pin A & B: 7.5A max at 20 VDC Pin C: 1A max at 20 VDC Insulator Resistance: 250 VAC for 1 minute Dielectric Withstanding Strength: 250 VAC for 1 minute

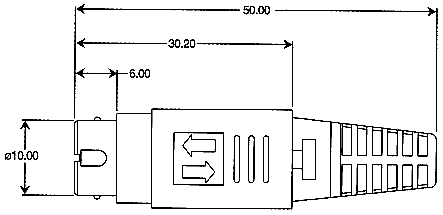

DP-003
Specifications DP-003
Material and Finish: Housing: (Body & Cover) Material: P.B.T.; Valox 420-SEO Rating UL 94V-0 Strain Relief: Material: PVC Contacts: Contact Terminals     Material: Brass     Plating: Nickel Earth Terminal:     Material: Brass     Plating: Nickel Terminal C:     Material: Brass     Plating: Nickel Electrical Specifications: Rated Current: Pins 7.5A max at 20 VDC Insulator Resistance: 250 VAC for 1 minute Dielectric Withstanding Strength: 250 VAC for 1 minute

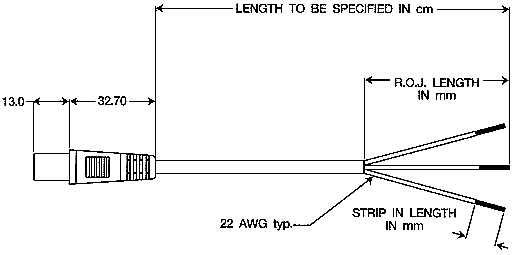

PCA-010-22-085 Shown

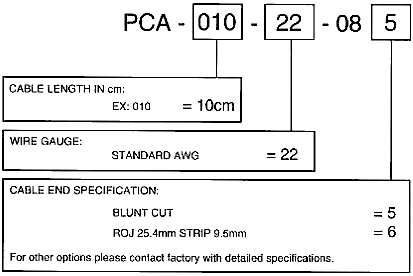

Example & Ordering Code
For Specifications, please contact Beckwith Electronics
