Power Dynamics, Inc.

Power Pin Connectors, 5.08mm

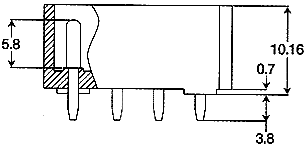

PM-001
	PCB Layout, Top View
PM-002
	PCB Layout, Top View
Specifications
Material and Finish Housing Material: Nylon 66 Rating: UL 94V-2 Contacts Material: Brass Plating: Tin: 70µ" over Nickel Electrical Specifications Current Rating: 7 A Insulation Resistance: 1000 Megaohm min. @ 500VDC Dielectric Withstanding Strength: 1000 VAC rms for 1 minute Temperature: -55°C to +105°C
