Power Dynamics, Inc.

Pin Receptacle, I.D.C.

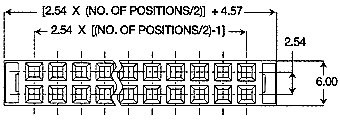

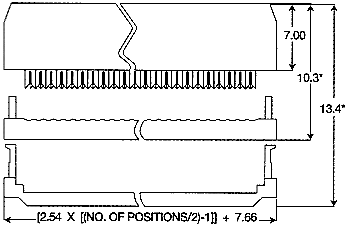

TCSD-034-I
2.54mm

(Shown)


Available in 10, 14, 16, 20, 24, 26, 30, 34, 40, 50, 60, and 64 contacts


*After Assembly

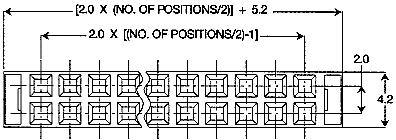

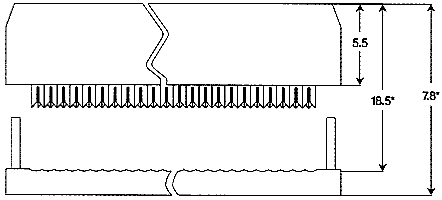

TCSD-040-I-20
2.0mm

(Shown)


Available in 20, 22, 24, 26, 34, 40, 44, 50, 60, and 68 contacts


*After Assembly


TCSD-034-I-127
1.27mm

(Shown)


Available in 20, 26, 32, 34, 40, 50, 52, 60, 68, 80 and 100 contacts


*After Assembly


Dimensions
Position20263234405052606880100
A18.5522.3626.1727.4431.2537.5038.8743.9549.0356.6569.35
B11.4315.2419.0520.3224.1330.4831.7536.8341.9149.5362.23
C13.9517.7621.5722.8426.6533.0034.2739.3544.4352.0564.75
D16.3520.1623.9725.2429.0535.4036.6741.7546.8354.4567.15

Click here for Specifications

Specifications subject to change without notice. Dimensions in mm.
