Power Dynamics, Inc.

Pin Receptacle, Crimp

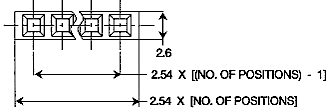

TCT-004 2.54mm (Shown) Available in 2-60 contacts
	Part Number: TCT-REEL Material and Finish Contacts Material: Phosphor Bronze Plating: Gold Flash Electrical Specifications Current Rating: 1 A Wire Size: 22 - 30 AWG

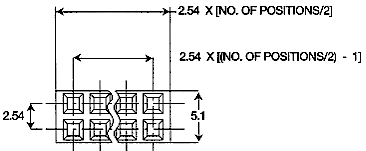

TCTD-020 2.54mm (Shown) Available in 4-120 contacts
	Part Number: TCT-REEL Material and Finish Contacts Material: Phosphor Bronze Plating: Gold Flash Electrical Specifications Current Rating: 1 A Wire Size: 22 - 30 AWG
TCT-004-20 2.0mm (Shown) Available in 2-40 contacts
	Part Number: TCT-REEL-20 Material and Finish Contacts Material: Phosphor Bronze Plating: Gold Flash Electrical Specifications Current Rating: 1 A Wire Size: 22 - 30 AWG

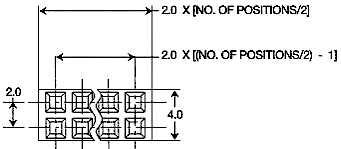

TCTD-020-20 2.0mm (Shown) Available in 4-80 contacts
	Part Number: TCT-REEL-20 Material and Finish Contacts Material: Phosphor Bronze Plating: Gold Flash Electrical Specifications Current Rating: 1 A Wire Size: 22 - 30 AWG
