Power Dynamics, Inc.

Pin Header, 2.54mm, P.C.B., I.D.C., Latched

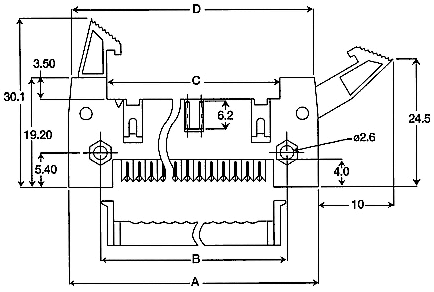

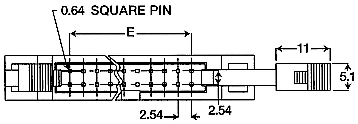

TCMD-020-C (Shown) Available in 10, 14, 16, 20, 24, 26, 30, 34, 40, 50, 60, and 64 contacts
Number of Pins   10 14 16 20 24 26 30 34 40 50 60 64 A 32.00 37.08 39.62 44.70 49.78 52.32 57.40 62.48 70.10 82.80 95.50 100.58 B 21.84 26.92 29.46 34.54 39.62 42.16 47.24 52.32 59.94 72.64 85.34 90.42 C 18.10 23.18 25.72 30.80 35.88 38.42 43.50 48.58 56.20 68.90 81.60 86.68 D 29.90 34.98 37.52 42.60 47.68 50.22 55.30 60.38 68.00 80.70 93.40 98.48 E 10.16 15.24 17.78 22.86 27.94 30.48 35.56 40.64 48.26 60.96 73.66 78.74

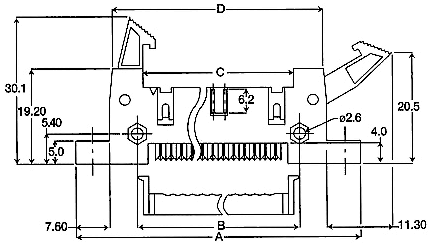

TCMD-026-A (Shown) Available in 10, 14, 16, 20, 24, 26, 30, 34, 40, 50, 60, and 64 contacts
Number of Pins   10 14 16 20 24 26 30 34 40 50 60 64 A 47.20 52.28 54.82 59.90 64.98 67.52 72.60 77.68 85.30 98.00 110.70 115.78 B 21.84 26.92 29.46 34.54 39.62 42.16 47.24 52.32 59.94 72.64 85.34 90.42 C 18.10 23.18 25.72 30.80 35.88 38.42 43.50 48.58 56.20 68.90 81.60 86.68 D 29.90 34.98 37.52 42.60 47.68 50.22 55.30 60.38 68.00 80.70 93.40 98.48 E 10.16 15.24 17.78 22.86 27.94 30.48 35.56 40.64 48.26 60.96 73.66 78.74
Click here for Specifications
