Power Dynamics, Inc.

Pin Header, 2.54mm, P.C.B., I.D.C.

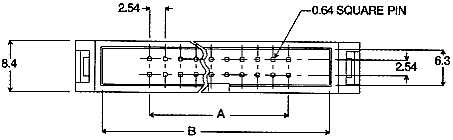

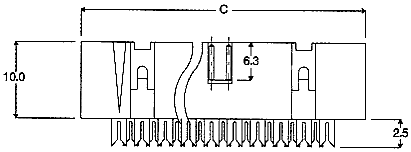

TCMD-026-I
(Shown)


Available in 10, 14, 16, 20, 24, 26, 30, 34, 40, 50, 60, and 64 contacts

Number of Pins
 101416202426303440506064
A10.1615.2417.7822.9627.9430.4835.5640.6448.2660.9673.6678.74
B18.0023.0825.6230.7035.7838.3243.4048.4856.1068.9081.6086.68
C23.0028.0830.6235.7040.7843.3248.4053.4861.1073.9086.6091.68

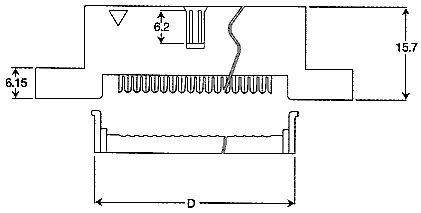

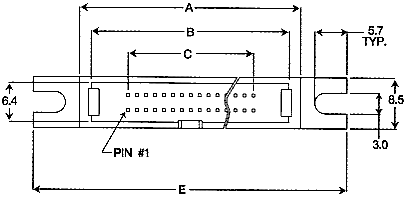

TCMD-020-E
(Shown)


Available in 10, 14, 16, 20, 24, 26, 30, 34, 40, 50, 60, and 64 contacts

Number of Pins
 101416202426303440506064
A21.4026.4829.0234.1039.1841.7246.8051.8859.5072.2084.9089.98
B18.3023.3825.9231.0036.0838.6243.7048.7856.4069.1081.8086.88
C10.1615.2417.7822.8627.9430.4835.5640.6448.2660.9673.6678.74
D17.3422.4224.9630.0435.1237.6642.7447.8255.4468.1480.8485.92
E36.8041.8844.4249.5054.5857.1262.2067.2874.9987.60100.30105.38


Click here for Specifications

Specifications subject to change without notice. Dimensions in mm.
