Power Dynamics, Inc.

Pin Header, 1.27mm, P.C.B., Boxed

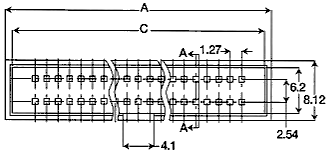

TCMD-034-B-127 (Shown) Available in 20, 26, 32, 34, 40, 50, 52, 60, 68, 80, and 100 contacts.
	Section A-A

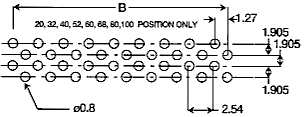

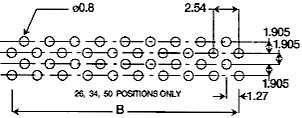

PCB Layout	PCB Layout
Dimensions   20 26 32 34 40 50 52 60 68 80 100 A 20.95 24.76 28.57 29.84 33.65 40.00 41.27 46.35 51.43 59.05 71.75 B 11.43 15.24 19.05 20.32 24.13 30.48 31.75 36.83 41.91 49.53 62.23 C 18.75 22.56 26.37 27.64 31.45 37.80 39.07 44.15 49.23 56.85 69.55

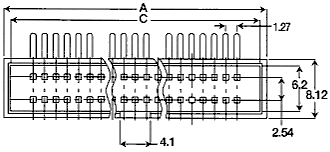

TRMD-080-B-127 (Shown) Available in 20, 26, 32, 34, 40, 50, 52, 60, 68, 80, and 100 contacts.
	Section A-A
PCB Layout	PCB Layout
Dimensions   20 26 32 34 40 50 52 60 68 80 100 A 20.95 24.76 28.57 29.84 33.65 40.00 41.27 46.35 51.43 59.05 71.75 B 11.43 15.24 19.05 20.32 24.13 30.48 31.75 36.83 41.91 49.53 62.23 C 18.75 22.56 26.37 27.64 31.45 37.80 39.07 44.15 49.23 56.85 69.55
Click here for Specifications
