Power Dynamics, Inc.

PDI - 1/2AA.
A P.C.B. Base board mounting battery holder for "1/2 AA" cells (max. dimensions 25.1mm x 14.9mm dia.). It has dual connections by P.C.B. and two holes to lock holder into the P.C.B. or base board.

PDI - 1/2 AAC
Optional cover with positive locking clips to hold it firmly in place on the above holder.

"1/2 AA" Size Cells

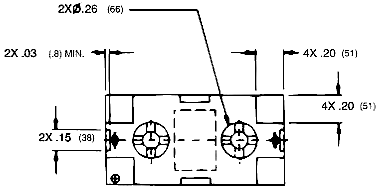

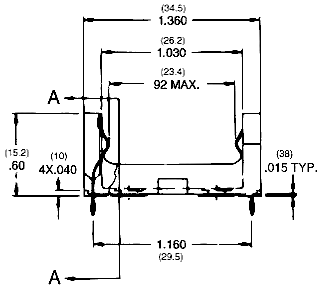

PDI-1/2AA Battery Holder

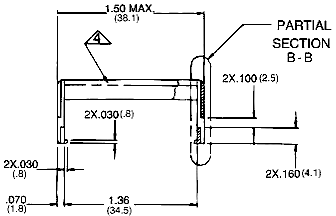

Section A-A

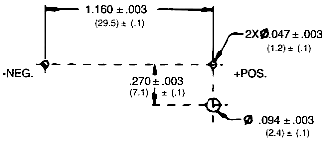

Board Layout
PDI-1/2AAC Optional Cover

Section A-A
Specifications subject to change without notice. Dimensions in inches.
(Metric dimensions are shown in parentheses.)
