Features
- Two stage filters designed to provide high performance in suppressing both line-to-line and line-to-ground noise for most digital electronic equipment
- Low leakage current: 1mA max
- Screw post terminals
Applications
- Digital electronic equipment, motors and switching power supplies
|
PD01PS-L2
PD03PS-L2
PD06PS-L2
PD10PS-L2
 |
- Approvals:
  (VDE submitted)
|
| Specifications |
|---|
| Model No. |
PD01PS-L2 |
PD03PS-L2 |
PD06PS-L2 |
PD10PS-L2 |
| Rated Voltage |
250V AC |
250V AC |
250V AC |
250V AC |
| Rated Current |
1A |
3A |
6A |
10A |
| Leakage Current |
1mA
250V, 60Hz |
1mA
250V, 60Hz |
1mA
250V, 60Hz |
1mA
250V, 60Hz |
Test
Voltage |
Line to Line |
1450V DC |
1450V DC |
1450V DC |
1450V DC |
| Line to Ground |
2250V DC |
2250V DC |
2250V DC |
2250V DC |
| Insulation Resistance |
6000M ohms MIN |
6000M ohms MIN |
6000M ohms MIN |
6000M ohms MIN |
Direct Current
Resistance |
0.7 ohm MAX |
0.3 ohm MAX |
0.15 ohm MAX |
0.1 ohm MAX |
| Temperature Rise |
35°C MAX |
35°C MAX |
35°C MAX |
35°C MAX |
| Operating Temperature |
-25°C to
+85°C |
-25°C to
+85°C |
-25°C to
+85°C |
-25°C to
+85°C |
| Attenuation |
|---|
Normal Mode
30db MIN |
0.25 - 15 MHz |
0.40 - 20 MHz |
0.60 - 30 MHz |
0.90 - 40 MHz |
Common Mode
30db MIN |
0.10 - 16 MHz |
0.20 - 25 MHz |
0.30 - 22 MHz |
0.55 - 45 MHz |
|

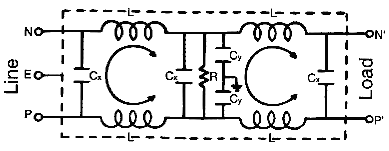

| Circuit
|
|---|
| Part No. |
L(mH) x 4 |
Cx (µF) x 3 |
Cy (pF) x 2 |
R (ohm) |
| PD01PS-L2 |
3.7 |
0.1 |
3300 |
10M |
| PD03PS-L2 |
1.8 |
0.1 |
3300 |
10M |
| PD06PS-L2 |
0.7 |
0.1 |
3300 |
10M |
| PD10PS-L2 |
0.3 |
0.1 |
3300 |
10M |
|
|---|

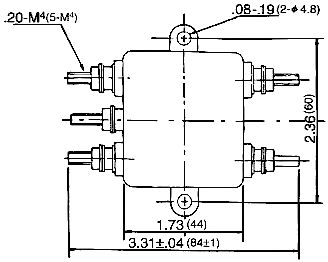

| Drawings |
|---|
|
|
|---|
| Attenuation in 50 ohm-50 ohm circuit according CISPR |
|---|
|
|
|---|
| Specifications subject to change without notice. (Metric dimensions are shown in parentheses.) |
