Power Dynamics, Inc.

MDC-25 Series Side Kink Shield
MDC-258 Shown
	Detail "A"
Specifications
Material and Finish: Body: Material: P.B.T.; Valox 420-SEO Rating: UL 94V-0 Shield: Material: Steel Plating: Lead 10% / Tin 90% Contacts: Contact Terminals: Material: Phosphor Bronze Plating: Silver Earth Terminal: Material: Brass Plating: Lead 10% / Tin 90% Mechanical Specifications: Extraction Force: 0.9 - 3 kg Insertion Force: 4.5 kg max. Electrical Specifications: Rated Current: AC: 1 A @ 100 VAC DC: 2 A @ 12 VDC Insulator Resistance: 50 Megaohm min. @ 250 VDC Dielectric Withstanding Strength: 250 VAC for 1 minute Contact Resistance: 30 milliohm max.
Part Numbers & Drawings

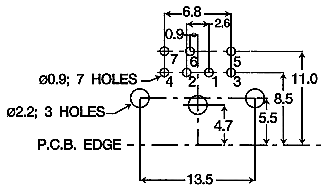

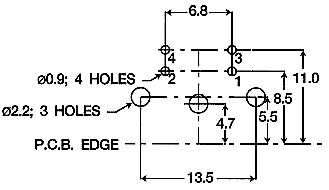

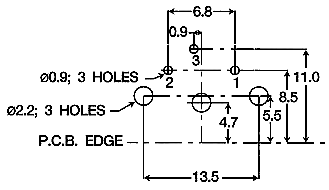

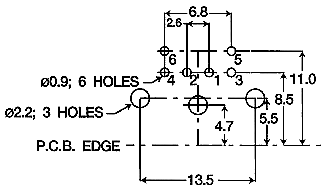

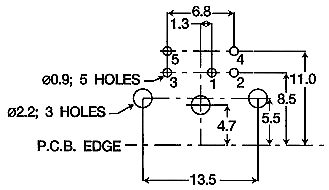

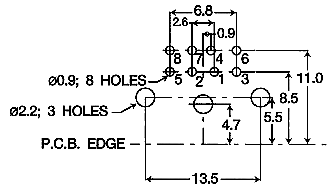

Part No. / Contact Arrangement PCB Layout Top View MDC-253 3 Contacts MDC-254 4 Contacts MDC-255 5 Contacts MDC-256 6 Contacts MDC-257 7 Contacts MDC-258 8 Contact

Specifications subject to change without notice. Dimensions in mm.
