Power Dynamics, Inc.

Discontinued for reference only MDC-16 Series Straight, Panel Mount
MDC-166 Shown
	Wire Gauge = 26 AWG
Panel Cutout
Specifications
Material and Finish: Body: Material: P.B.T.; Valox 420-SEO Rating: UL 94V-0 Contacts: Contact Terminals: Material: Phosphor Bronze Plating: Silver Earth Terminal: Material: Brass Plating: Lead 10% / Tin 90% Mechanical Specifications: Extraction Force: 0.8 - 3 kg Insertion Force: 4.5 kg max. Electrical Specifications: Rated Current: AC: 1 A @ 100 VAC DC: 2 A @ 12 VDC Insulator Resistance: 50 Megaohm min. @ 250 VDC Dielectric Withstanding Strength: 250 VAC for 1 minute Contact Resistance: 30 milliohm max.
Part Numbers & Drawings
Part No. / Contact Arrangement MDC-163 3 Contacts MDC-164 4 Contacts MDC-165 5 Contacts MDC-166 6 Contacts MDC-167 7 Contacts MDC-168 8 Contacts

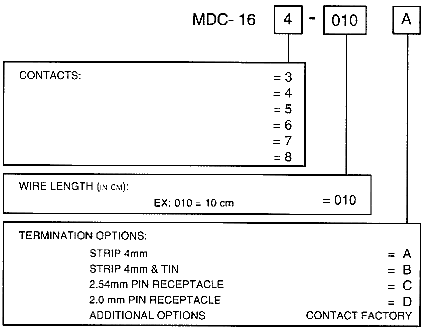

Example & Ordering Code
Discontinued for reference only

Specifications subject to change without notice. Dimensions in mm.
