Power Dynamics, Inc.

HGN-375 protects electronic equipment from common and differential mode line interference in the range of 10KHZ up to 30MHZ. This "combi-unit" is equipped with IEC Connector, fuse holder for one or two 5 x 20mm fuses, 2 pole on/off switch and fully enclosed metal housing. HGN-375
Fused with On/Off Switch

Technical Data
Operating voltage:250 V / 50 Hz
110 V / 60 Hz
Rated current:1A / 2A / 4A / 6A
(6A for UL & VDE only)
Leakage current:<0.5 mA / 250 VAC
Temperature range:-25°C + 85°C
Test voltage (VDE 0565):1.8 kV / 50 Hz - 2 s

Example & Ordering Code

Panel cut-out

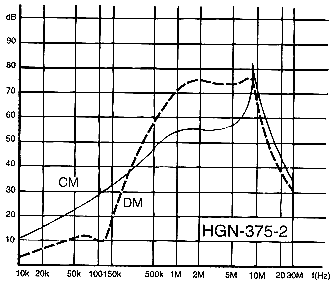

Attenuation in 50 ohm-50 ohm circuit according CISPR

Specifications subject to change without notice. Dimensions in inches. (Metric dimensions are shown in parentheses.) All versions available for medical grade application. Contact Beckwith Electronics.
