Power Dynamics, Inc.

DP-101 13 Pin Plug Mates to DS-101 & DS-103
Specifications
Electrical Specifications: Rated Current: 1A Rated Voltage: 12 VDC Insulator Resistance: 50 Megaohm min. @ 250 VDC Dielectric Withstanding Strength:     250 VAC for 1 Minute Housing Material: Nylon UL 94V-0

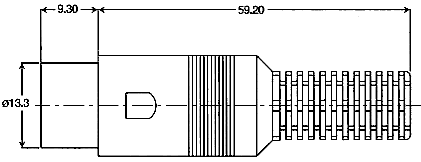

Specifications subject to change without notice. Dimensions in mm.
