Power Dynamics, Inc.

Straight, Solder Cup Pins

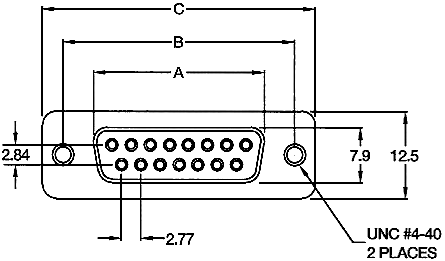

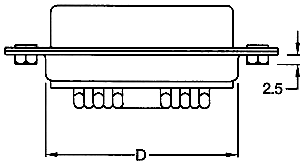

PDI-09RS-SW (Shown)
	Number of Pins   9 15 25 37 A 16.30 24.60 38.30 54.80 B 25.00 33.30 47.10 63.50 C 30.80 39.20 53.10 69.40 D 19.20 27.70 41.10 57.30

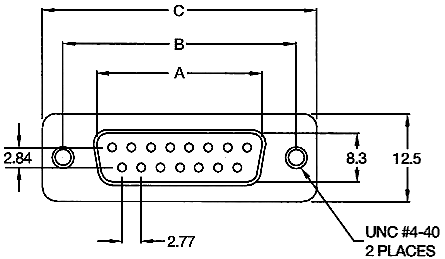

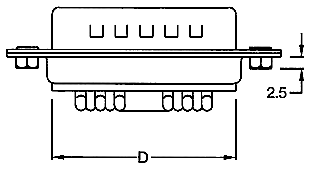

PDI-09SS-SW (Shown)
	Number of Pins   9 15 25 37 A 16.92 25.25 38.96 55.42 B 25.00 33.30 47.10 63.50 C 30.80 39.20 53.10 69.40 D 19.20 27.70 41.10 57.30
Click here for Specifications
