Crimp Pins

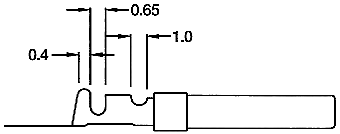

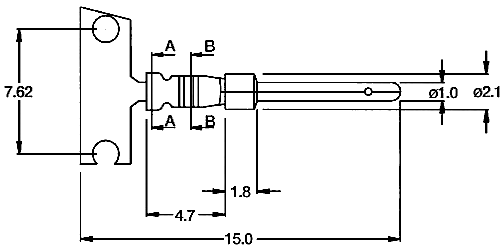

PDR-RB (Shown)
	Sec. A-A
	Sec. B-B
Wire AWG A B C D 20-22 AWG 2.8 2.7 2.3 2.1 24-26 AWG 2.1 1.9 1.8 1.36

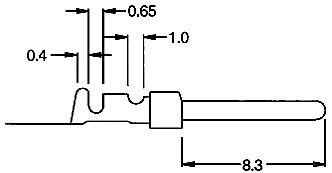

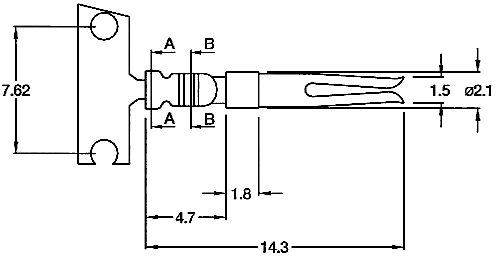

PDR-SB (Shown)
	Sec. A-A
	Sec. B-B
Wire AWG A B C D 20-22 AWG 2.8 2.7 2.3 2.1 24-26 AWG 2.1 1.9 1.8 1.36
