Power Dynamics, Inc.

Straight, P.C. Pins
PDI-09RS-W-H (Shown)

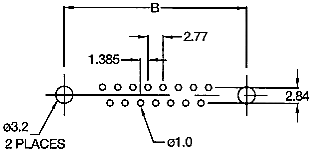

	P.C.B. Layout
Number of Pins   9 15 25 37 A 16.30 24.60 38.30 54.80 B 25.00 33.30 47.10 63.50 C 30.80 39.20 53.10 69.40 D 19.20 27.70 41.10 57.30

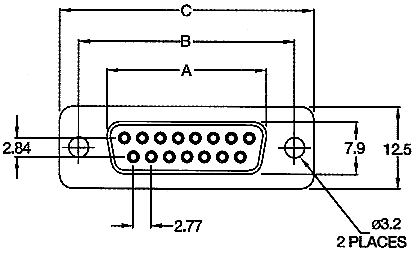

PDI-09SS-W-H (Shown)

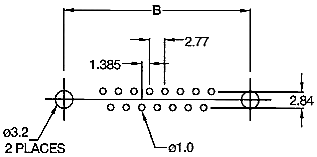

	P.C.B. Layout
Number of Pins   9 15 25 37 A 16.92 25.25 38.96 55.42 B 25.00 33.30 47.10 63.50 C 30.80 39.20 53.10 69.40 D 19.20 27.70 41.10 57.30
