Power Dynamics, Inc.

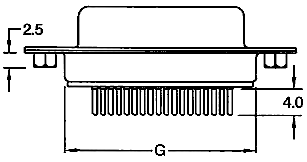

High Density, P.C. Pins

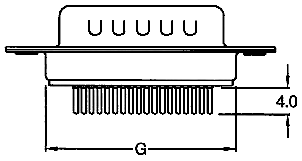

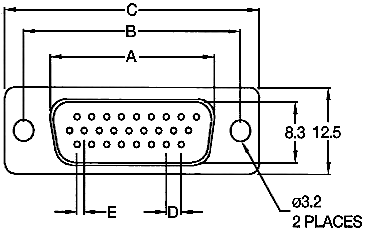

PDI-26RHS-W (Shown)
	Number of Pins   15 26 44 62 A 16.30 24.60 38.30 54.80 B 25.00 33.30 47.10 63.50 C 30.80 39.20 53.10 69.40 D 2.29 2.29 2.29 2.41 E 1.14 1.14 1.14 1.20 F 7.04 6.88 6.88 7.00 G 19.20 27.70 41.10 57.30

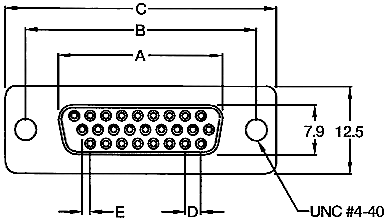

15 Position Female	26, 44, 62 Position Female

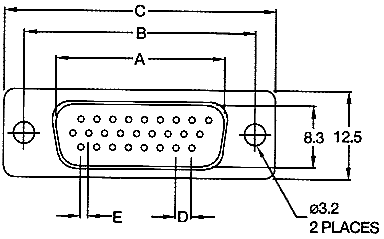

PDI-26SHS-H (Shown)
	Number of Pins   15 26 44 62 A 16.92 25.25 38.96 55.42 B 25.00 33.30 47.10 63.50 C 30.80 39.20 53.10 69.40 D 2.29 2.29 2.29 2.41 E 1.14 1.14 1.14 1.20 F 7.04 6.88 6.88 7.00 G 19.20 27.70 41.10 57.30

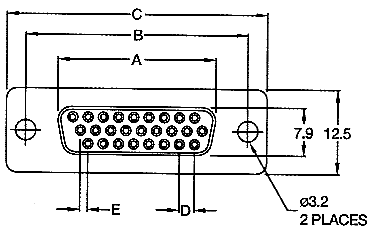

15 Position Female	26, 44, 62 Position Female

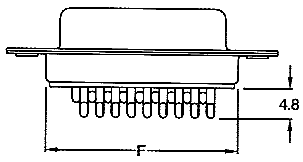

High Density, Solder Cup

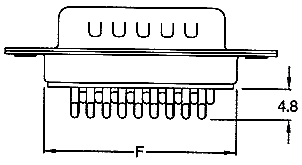

PDI-26RHS-S-H (Shown)
	Number of Pins   15 26 44 62 A 16.30 24.60 38.30 54.80 B 25.00 33.30 47.10 63.50 C 30.80 39.20 53.10 69.40 D 2.29 2.29 2.29 2.41 E 1.14 1.14 1.14 1.20 F 19.20 27.70 41.10 57.30
PDI-26SHS-S-H (Shown)
	Number of Pins   15 26 44 62 A 16.92 25.25 38.96 55.42 B 25.00 33.30 47.10 63.50 C 30.80 39.20 53.10 69.40 D 2.29 2.29 2.29 2.41 E 1.14 1.14 1.14 1.20 F 19.20 27.70 41.10 57.30
Click here for Specifications
