Power Dynamics, Inc.

Specifications for Filtered, High Density, Right Angle, P.C.B., Connectors
Material and Finish Shell Material: Steel Plating: Tin Thickness: Base Copper: 40µ" Tin: 80 - 120µ" Contacts Material: Brass (male) Phosphor Bronze (female) Plating: Gold Plate or Tin/Lead over Nickel Thickness: Gold Flash 40µ" Nickel base 80 - 100µ" Tin/Lead Insulator P.B.T. and glass-fiber reinforced UL 94V-0 Mechanical Mating Force: 15 Pin 26 Pin 44 Pin 62 Pin Minimum: 3.0 kg 3.5 kg 4.0 kg 5.0 kg Maximum: 8.0 kg 9.0 kg 13.0 kg 18.0 kg   Unmating Force: 15 Pin 26 Pin 44 Pin 62 Pin Minimum: 3.0 kg 3.5 kg 4.0 kg 6.0 kg Maximum: 9.0 kg 10.0 kg 13.0 kg 18.0 kg Electrical Specifications Rated Current: 3 A Rated Voltage: 300 VDC Insulator Resistance: 3000 Megaohm min. @ 500 VDC Contact Resistance: 15 milliohm max. Dielectric Withstanding Strength 1000 VA for 1 minute Temperature: -55°C to +105°C

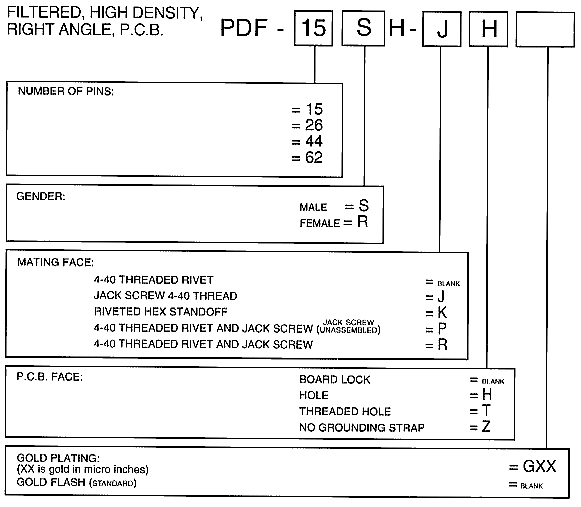

Ordering Code
Attenuation Curves
9 Pin
Equiptment Used: HP-4191A RF Impedance Tester HP-16093A Binding Post Fixture Test Lead Wire Length: 80mm Number of Turns: 1/2 Wire Diameter: 1.0mm
15 Pin
Equipment Used: HP-4191A RF Impedance Tester HP-16093A Binding Post Fixture Test Lead Wire Length: 63mm Number of Turns: 1/2 Wire Diameter: 0.6mm
15 Pin High Density
Equipment Used: HP-4191A RF Impedance Tester HP-16093A Binding Post Fixture Test Lead Wire Length: 80mm Number of Turns: 1/2 Wire Diameter: 1.0mm
25 Pin
Equipment Used: HP-4191A RF Impedance Tester HP-16093A Binding Post Fixture Test Lead Wire Length: 80mm Number of Turns: 1/2 Wire Diameter: 0.4mm
