Power Dynamics, Inc.

B34
A.P.C.B./Baseboard mounting battery holder accepting a single "AAA"
size cell (BS397 max. dimensions - 034.2mm x 61.5mm). This unit has an inter-locking device allowing multiple assemblies to be constructed. It has dual connections either by P.C.B. or .110" solder tabs an two holes to lock holder onto the P.C.B. or baseboard. Polarity is clearly marked. PC pin may be trimmed for base mounting only.
"AAA" Size Cells
P.C.B./Baseboard Mounting Interlocking
Specifications
Materials:
Housing:Glass filled nylon, 94HB
Contacts:Nickel silver
Operating Temp.:-30°C to +70°C

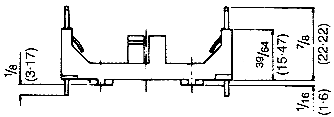

B34

P.C.B. layout
Specifications subject to change without notice. Dimensions in inches.
(Metric dimensions are shown in parentheses.)
