Power Dynamics, Inc.

B27
This panel mounted battery holder accepts 4 "AA" size cells. It features a removable loading magazine marked with polarity. Other features include: easy "snap-in" location and positive lock drawer. Direct self-contacting on insertion, with rear solder tab terminations. Contacts are self compensating, allowing for battery terminal tolerances and variants.
"AA" Size Cells
Panel Mounting
Specifications
Materials:
Housing:Glass filled nylon, 94HB
Contacts:Nickel silver
Operating Temp.:-30°C to +70°C

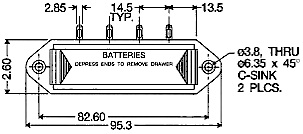

B27

Panel cut-out
Specifications subject to change without notice. Dimensions in mm.
