Power Dynamics, Inc.

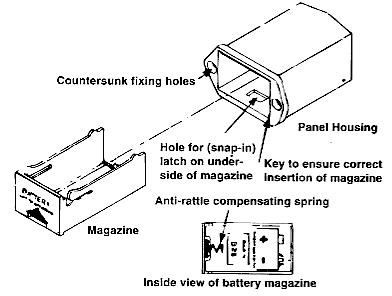

B23, B26 These panel mounted battery holders accept "9V" size cells (BS397 max. dimensions - W26.5 x D17.5 x H48.5mm). They feature removable loading magazines marked with polarity. Other features include: positive "snap-in" location and easy "finger-lift" withdrawal. Direct self-contacting on insertion, with rear solder tab terminations. Contacts are self-compensating, allowing for battery terminal tolerances and variants.	"9V" Size Cells Panel Mounting
Specifications
Materials: Housing: Glass filled nylon, 94HB Contacts: Phosphor bronze, tin plated Operating Temp.: -30°C to +70°C

B23
	View with rear tag details omitted
Panel cut-out
B26
	View with rear tag details omitted
Panel cut-out
Specifications subject to change without notice. Dimensions in inches. (Metric dimensions are shown in parentheses.)
