Power Dynamics, Inc.

Cable Connectors
Male Cable Connector PD-HEC-MCC
Female Cable Connector PD-HEC-FCC
Panel Connectors
Male Panel Connector PD-HEC-MPC-
Female Panel Connector PD-HEC-FPC-
Accessories
Contact Extraction Tool PD-HEC-SCET (Signal) PD-HEC-PCET (Power)

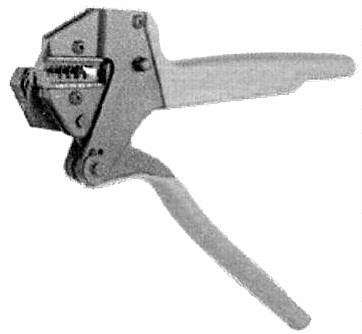

Crimp Tool PD-HEC-CT
Contacts Sold Separately Protection Caps also Available
Contacts
Power Contacts
Female Crimp	AWG P/N 14 PD-HEC-FPC-14 16 PD-HEC-FPC-16
Male Crimp	AWG P/N 14 PD-HEC-MPC-14 16 PD-HEC-MPC-16
Signal Contacts
Female Crimp	AWG P/N 16 PD-HEC-FSC-16 18 PD-HEC-FSC-18 20 PD-HEC-FSC-20 26-22 PD-HEC-FSC-26
Male Crimp	AWG P/N 16 PD-HEC-MSC-16 18 PD-HEC-MSC-18 20 PD-HEC-MSC-20 26-22 PD-HEC-MSC-26
Specifications
Operating Temperature:	-40ºC to +85ºC
Body & Housing:	PA UL-94-V-0
Termination:	Type: Crimp
Contact:	Brass
Plating:	Silver
Contact Ratings:	Power: 20A, 400V Max UL Power: 25A, 400V Max VDE Signal: 3A, 60V Max

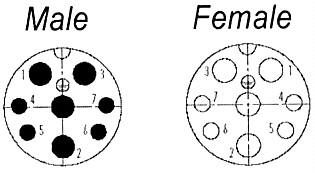

Contacts:	8 (4+3+E)
Protection:	IP66 / IP69K
Insulation Resistance:	<8MΏ
Mating Cycles:	>1000
Wire Style:	UL 21223
Specifications subject to change without notice. Dimensions in mm.
