Power Dynamics, Inc.

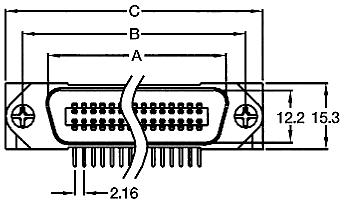

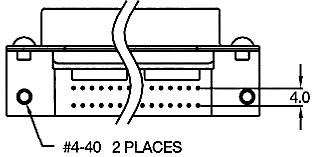

PCI-50S-B-UT (Shown) Right Angle, P.C.B., Shielded
	Position A B C 14 25.50 36.00 43.90 24 36.30 46.80 54.70 36 49.30 59.70 67.70 50 64.40 74.90 82.80

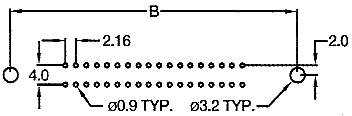

PCB Layout (Top View)	Click Here for Specifications.

Specifications subject to change without notice. Dimensions in mm.
