Power Dynamics, Inc.

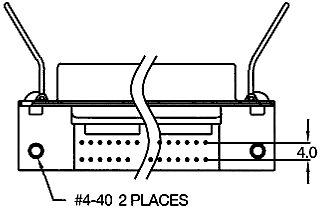

PCI-50R-B-LT (Shown) Right Angle, P.C.B., Shielded

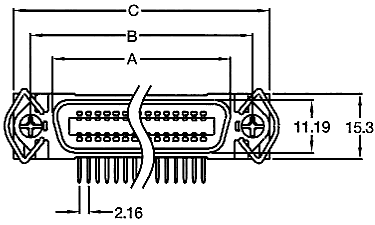

	Position A B C 14 25.20 36.00 43.90 24 36.00 46.80 54.70 36 48.90 59.70 67.70 50 64.10 74.90 82.80

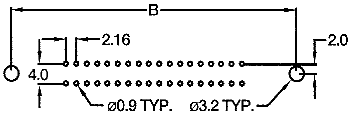

PCB Layout (Top View)	Click Here for Specifications.

Specifications subject to change without notice. Dimensions in mm.
