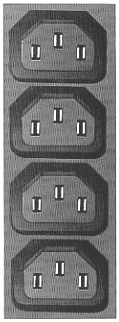

Note: PDI can custom terminate connections between outlets according to customer specifications.	44R02 SNAP-IN
Specifications
Material and Finish: Housing: Material: Polycarbonate Rating: UL 94V-0 Contacts: Material: Brass Plating: Tin Electrical Specifications Insulation Resistance: 100 Megaohm min. @ 500 VDC Dielectric Strength: 2000 VAC for 1 minute

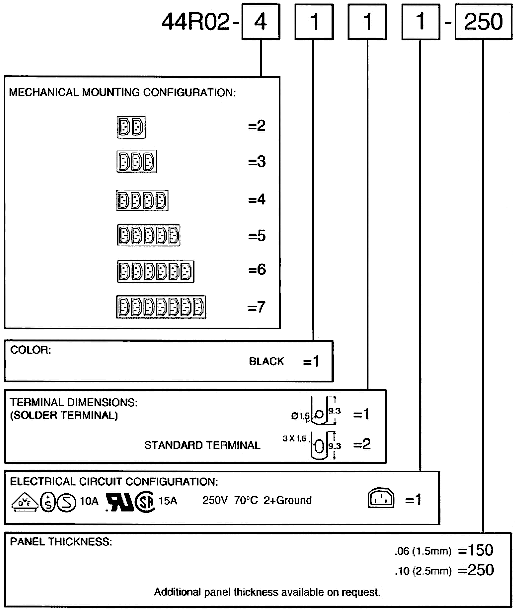

Example & Ordering Code

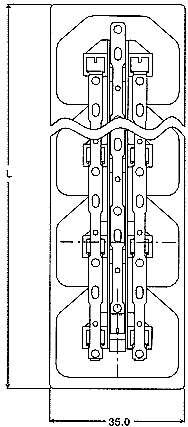

L E F 2= 51.0 48.0 48.5 3= 75.0 72.0 72.5 4= 99.0 96.0 96.5 5= 123.0 120.0 120.5 6= 147.0 144.0 144.5 7= 171.0 168.0 168.5 Panel Cut-out

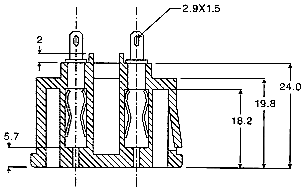

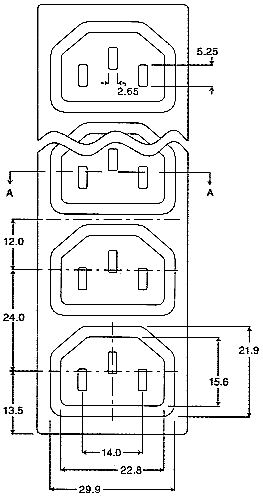

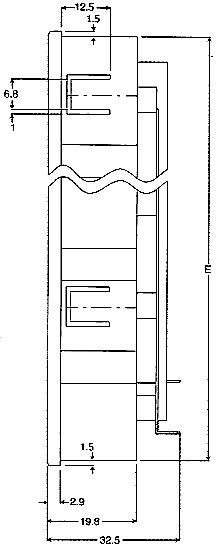

Specifications subject to change without notice. Dimensions in mm.
