Power Dynamics, Inc.

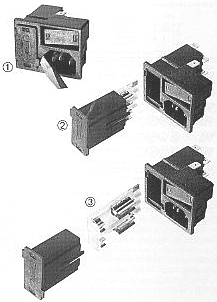

Same features as42R37 but with Voltage Selector. Changes voltages by rotating fuse cartridge. Meets all international safety requirements. Fuse Holder accepts 3 AG American or 5 x 20mm European fuses. 42R39
Snap-in
Specifications
Material and Finish:
Housing:
Material:Polycarbonate
Rating:UL 94V-0
Contacts:
Quick Connect:
Material:Brass
Plating:Nickel
Solder:
Material:Copper
Plating:Tin
Electrical Specifications
Insulation Resistance:100 Megaohm min. @ 500 VDC
Dielectric Strength:2000 VAC for 1 minute

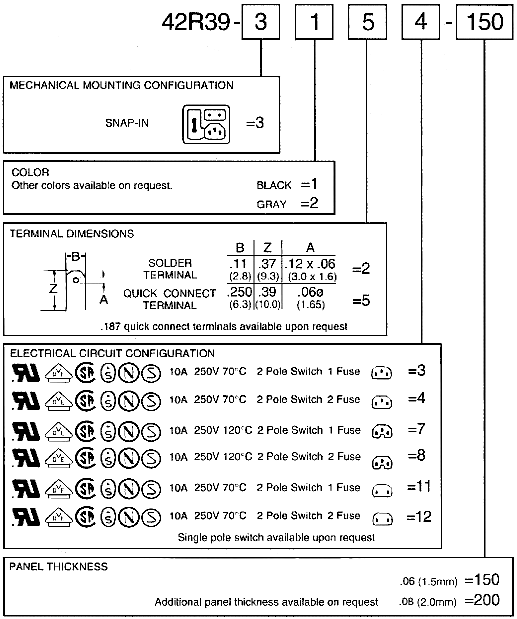

Example & Ordering Code

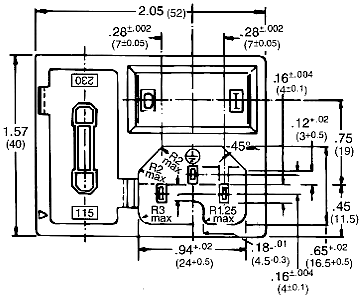

Panel Cut-out

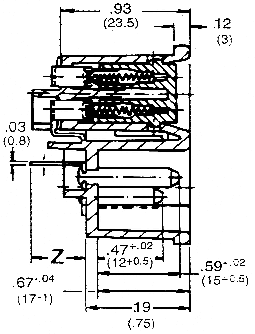

Side View Cross Section
Cross Section

Specifications subject to change without notice. (Metric dimensions are shown in parentheses.)

Part Numbers
42R39-3123-150
42R39-3123-200
42R39-3124-150
42R39-3124-200
42R39-3127-150
42R39-3127-200
42R39-3128-150
42R39-3128-200
42R39-31211-150
42R39-31211-200
42R39-31212-150
42R39-31212-200
42R39-3153-150
42R39-3153-200
42R39-3154-150
42R39-3154-200
42R39-3157-150
42R39-3157-200
42R39-3158-150
42R39-3158-200
42R39-31511-150
42R39-31511-200
42R39-31512-150
42R39-31512-200
42R39-3223-150
42R39-3223-200
42R39-3224-150
42R39-3224-200
42R39-3227-150
42R39-3227-200
42R39-3228-150
42R39-3228-200
42R39-32211-150
42R39-32211-200
42R39-32212-150
42R39-32212-200
42R39-3253-150
42R39-3253-200
42R39-3254-150
42R39-3254-200
42R39-3257-150
42R39-3257-200
42R39-3258-150
42R39-3258-200
42R39-32511-150
42R39-32511-200
42R39-32512-150
42R39-32512-200
