Combination power cord connector with single or double pole On/Off snap action power switch. Conforms with all international product safety requirements. Designed to eliminate discrete purchase, inventory & assembly of connector & switch. Terminal connections are solder or quick connect. Rated 15 Amp., 250 VAC, 70°C and 120°C, double pole On/Off switch.	42R36 Snap-in
Specifications
Material and Finish: Housing: Material: Polycarbonate Rating: UL 94V-0 Contacts: Material: Brass Plating: Nickel Electrical Specifications Insulation Resistance: 100 Megaohm min. @ 500 VDC Dielectric Strength: 2000 VAC for 1 minute

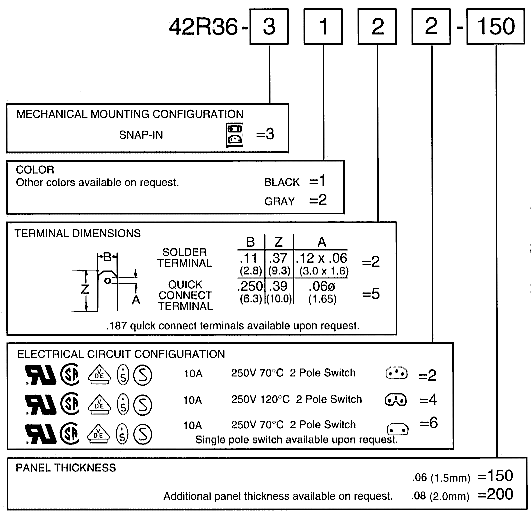

Example & Ordering Code

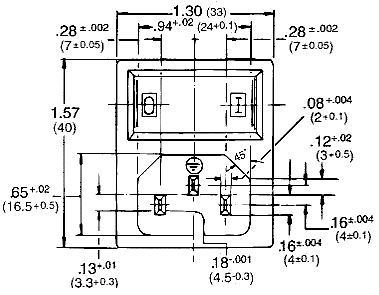

Combination Switch andIEC Connector Panel Cut-out

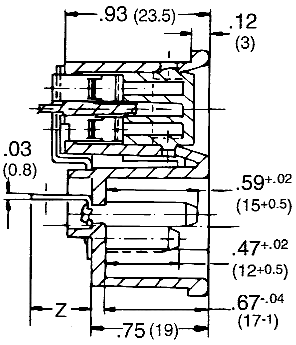

Specifications subject to change without notice. (Metric dimensions are shown in parentheses.)
