Power Dynamics, Inc.

General purpose power cord connector with printed circuit terminals. Conforms with all international safety requirements. Rated 15 Amp, 120 VAC, 70°C to 155°C operating temperature. Available 15 Amp. for UL and CSA.	PD-42R05-3 Printed Circuit
Specifications
Material and Finish: Housing: Material: P.B.T. Rating: UL 94V-0 Contacts: Material: Bronze Plating: Tin Electrical Specifications Insulation Resistance: 100 Megaohm min. @ 500 VDC Dielectric Strength: 2000 VAC for 1 minute
Example & Ordering Code
Panel Cutout

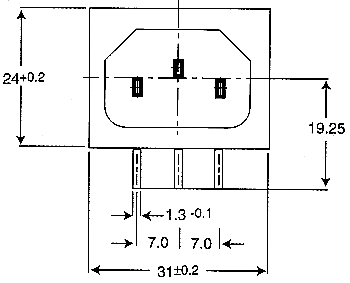

Specifications subject to change without notice. Dimensions in mm.
