Power Dynamics, Inc.


Back Side
Solder Terminals
42R03 Series
Side Flange
42R03-1


Cross Flange
42R03-2


Snap In
42R03-3


Side Flange
42R03-4

42R03-8
W/O Countersunk Mounting Holes


Bottom Flange
42R03-5

Bottom Flange
42R03-6


Side Flange
42R03-7



General purpose power cord connector. Solder lug terminal configuration. Rated 15 Amp., 250 VAC, 70°C to 120°C operating temperature. Designed for versatile mounting. Available in screw or snap-in panel mount and eight mounting configurations.

Specifications
Material and Finish:
Housing:
Material:Polycarbonate
Rating:UL 94V-0
Contacts:
Material:Copper
Plating:Tin
Electrical Specifications
Insulation Resistance:100 Megaohm min. @ 500 VDC
Dielectric Strength:2000 VAC for 1 minute

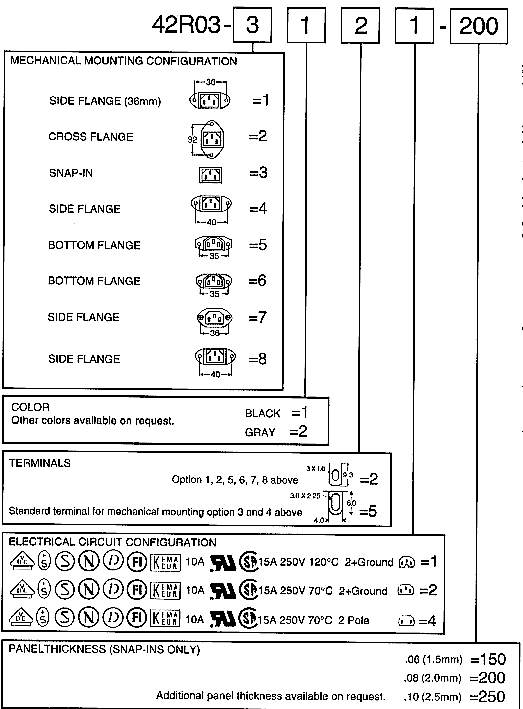

Example & Ordering Code

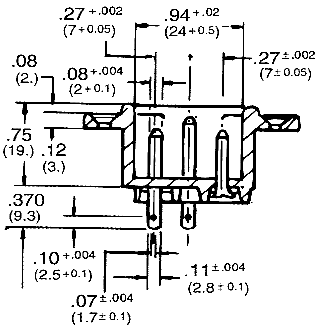

Cross Section

Side View
Cross Section

Specifications subject to change without notice. (Metric dimensions shown in parentheses.)
