Power Dynamics, Inc.

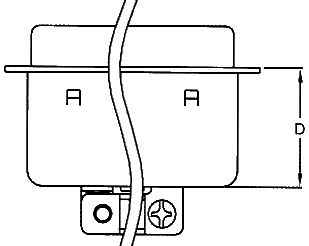

PCI-36SS-SB-N (Shown) Straight, Solder Cups, Shielded

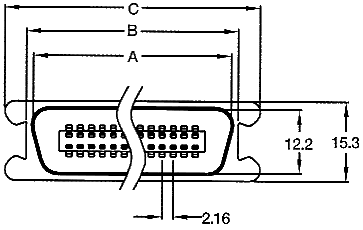

	Position A B C D 14 26.70 29.70 38.00 21.10 24 38.20 40.50 48.80 21.10 36 50.80 53.50 61.70 22.60 50 64.40 68.70 77.00 24.60
Click Here for Specifications.

Specifications subject to change without notice. Dimensions in mm.
