Power Dynamics, Inc.

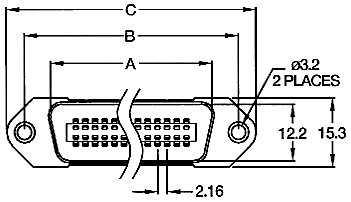

PCI-36SS-B-H
(Shown)
Straight, P.C. Pin, Shielded

PositionABCD
1425.5036.0043.9022.70
2436.3046.8054.7033.50
3649.3059.7067.7046.60
5064.4074.9082.8061.70

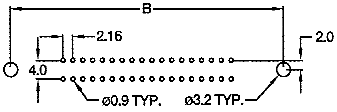

PCB Layout (Top View)

Click Here for Specifications.

Specifications subject to change without notice. Dimensions in mm.
