988 - 989 SERIES | |
---|---|
FEATURES: Available in 2 industry sizes/positions (50, 68). Excellent I/O connector. Solder cup connector, hardware and backshell supplied in kit. (Die cast with thumbscrews is IDC only). Accepts a wide variety of cable types. Very reliable in a high density package. MATERIALS: Connector: Insulator: High Temp. plastic, U.L. rated 94V-0. Contacts: Copper Alloy. Shell: Steel with Nickel plating. Cover: Glass-Fiber filled thermoplastic, U.L. rated 94V-0. (Contact Beckwith Electronics for plating options). |
Half Pitch Pin Connector and Backshell Kit SCSI 2&3 |
Ordering Information | ||||||||
---|---|---|---|---|---|---|---|---|

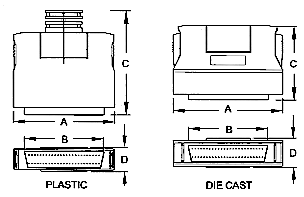

Position | Part Numbers | Dimensions | ||||||
Plastic | Die Cast | Die Cast (Thumbscrews) |
A | B | C Plastic |
C Die Cast |
D | |
50 | 988-050-010-091 | 988-050-030-121 | 989-050-030-121 Consult Beckwith Electronics |
1.917 | 1.404 | 1.732 | 1.339 | .504 |
48.70 | 35.66 | 43.99 | 34.01 | 12.80 | ||||
68 | 988-068-010-091 Consult Beckwith Electronics |
988-068-030-121 Consult Beckwith Electronics |
989-068-030-121 New Part Number 989-068-130L-121 (IDC) |
2.367 | 1.854 | 1.732 | 1.378 | .504 |
60.13 | 47.07 | 43.99 | 35.00 | 12.80 |
