479 SERIES
FEATURES:
Available in 4 industry sizes/positions (9, 15, 25, 37).
Available in standard .318" footprint.
Individual filtering of each pin.
Tin Shells.
Sealed metal rear side.
Tin plated plug shells have indents to provide
  grounding and additional retention.
Standard capacitor value of 1000 pf. (others
  available, consult Beckwith Electronics)
Rated current: 5 amps DC max.

MATERIALS:
Shell: Steel, tin plated.
Insulator: Glass-filled thermoplastic. U.L.
  rated 94V-0.
Machined Contacts:
  Male - Brass.
  Female - Phosphor bronze.
Plating: Gold flash on entire contact.

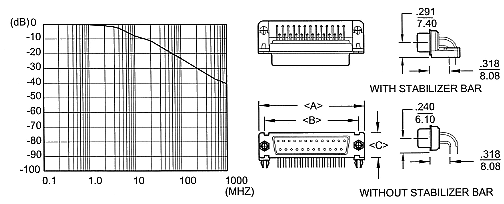

  (Contact Beckwith Electronics for other plating options).		 Right Angle D-Sub Filtered Connector
(.318" Footprint)





Ordering Information
See hardware table for hardware options
Position Part Numbers Dimensions
Tin
Shell		 With Stablizer
Bar		 A B C
9 Male 479-009-112-001 479-009-112-581 1.204 .984 .494
Female 479-009-212-001 479-009-212-581 30.58 24.99 12.55
15 Male 479-015-112-001 479-015-112-581 1.535 1.312 .494
Female 479-015-212-001 479-015-212-581 38.98 33.32 12.55
25 Male 479-025-112-001 479-025-112-581 2.078 1.850 .494
Female 479-025-212-001 479-025-212-581 52.78 47.00 12.55
37 Male 479-037-112-001 479-037-112-581 2.724 2.500 .494
Female 479-037-212-001 479-037-212-581 69.18 63.50 12.55
