477 SERIES
FEATURES:
Available in 4 industry sizes/positions (9,15, 25, 37).
Individual filtering of each pin.
Tin shells.
Sealed metal rear side.
Tin plated plug shells have indents to provide grounding
  and additional retention.
Standard capacitor value of 1000 pf. (others available,
  consult Beckwith Electronics)
Rated current: 5 amps DC max.
Insulation resistance: 1G ohm min. @ 25 degree C.

MATERIALS:
Shell: Steel, tin plated.
Insulator: Glass-filled thermoplastic. U.L. rated 94V-0.
Machined contacts:
  Male pins - Brass.
  Female pins - Phosphor bronze.
Plating: Gold flash on entire contact.
 (Contact Beckwith Electronics for other plating options).

Cable Mount Filtered
D-Sub Connector





Ordering Information

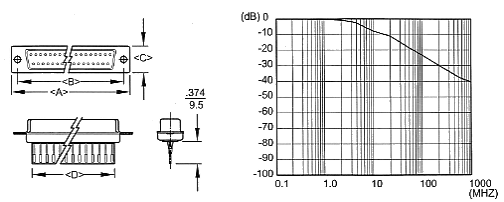

Position Part Numbers Dimensions
Tin Shell A B C D
9 Male 477-009-102-001 1.204 .984 .494 .551
Female 477-009-202-001 30.58 24.99 12.55 14.00
15 Male 477-015-102-001 1.535 1.312 .494 .885
Female 477-015-202-001 38.98 33.32 12.55 22.47
25 Male 477-025-102-001 2.078 1.852 .494 1.437
Female 171-025-202-001 52.78 47.04 12.55 36.50
37 Male 477-037-102-001 2.724 2.500 .494 2.204
Female 477-037-202-001 69.18 63.50 12.55 55.98
