Hirschmann


Laboratory Equipment 4 mm PRUF 2610 FT
Description

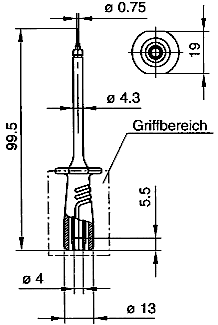

Test probe with elastic, shatter-proof insulating sleeve and slender, sprung stainless steel tip. This means that a constant pressure is ensured without the probe slipping off, even on the smallest measuring points. Connects with 4 mm standard laboratory equipment and safety laboratory equipment.

Rated voltage1000 V = 3/2
Volume resistance50 m Ohms
Temperature range-25°C...+80°C
Type of connection4 mm diameter socket
Test probesprung
Packaging quantity20 pieces
Order No.972318-100 (black)
972318-101 (red)
