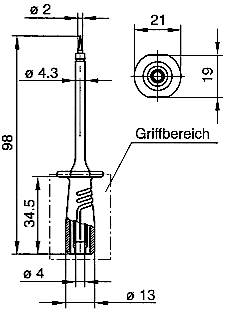

Safety Laboratory Equipment 4 mm PRUF 2600
Test probe with elastic, shatter-proof insulating sleeve and slender stainless steel tip. Tip for penetration of insulation and oxide layers. 4 mm diameter brass socket connection. Connects with safety measuring leads.

Rated voltage1000 V = (1.500 V=/8kV)
Overvoltage category3
Pollution degree2
Volume resistance50 m Ohms
Temperature range-25°C...+80°C
Type of connection4 mm diameter socket
Test Proberigide
Packaging quantity20 pieces
Order No.972317-100 (black)
972317-101 (red)
