Hirschmann

FiberINTERFACES	Fieldbus Systems
The demand of today's industries referring to fail-safety of machines and plants increases constantly. Required are transmission systems which operate safe and economically. Hirschmann offers for this components for the leading fieldbus technologies as Profibus, FIP and all RS 485 interfaces such as Modbus+, Sattbus, BITBUS, DIN-Mebbus, Modbus, Modbus+, Melsecnet, UNI-TELWAY, Party Line... Universal repeater for all RS 485 interfaces Product description The universal repeater OZD 485...is used to substitute electrical RS 485 interfaces by optical interfaces. The OZD 485 can be configured for half-duplex operation mode as well as for full-duplex operation mode. Further information See technical data in the catalog. FiberINTERFACES DS 280 490-480.

FiberINTERFACES

Fieldbus
Systems

The demand of today's industries referring to fail-safety of machines and plants increases constantly. Required are transmission systems which operate safe and economically. Hirschmann offers for this components for the leading fieldbus technologies as Profibus, FIP and all RS 485 interfaces such as Modbus+, Sattbus, BITBUS, DIN-Mebbus, Modbus, Modbus+, Melsecnet, UNI-TELWAY, Party Line...

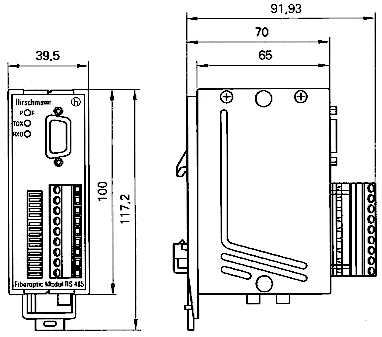

Universal repeater for all RS 485 interfaces

Product description
The universal repeater OZD 485...is used to substitute electrical RS 485 interfaces by optical interfaces. The OZD 485 can be configured for half-duplex operation mode as well as for full-duplex operation mode.

Further information
See technical data in the catalog. FiberINTERFACES DS 280 490-480.

Description OZD 485 P2
FSMA OZD 485 G2
FSMA OZD 485 G2
BFOC OZD 485
BFOC-1300

Signal RS 485

Topology Line, Star, Tree

Datarate 0 ... 2 MBit/s

Power Supply 5V; 18...32V DC

Electrical Interface 9 Pol. Sub-D / 9 Pol. Terminal block

Range¹ 0...80 m 0...2800 m 0...2800 m 0...22000 m

optical interface FSMA FSMA BFOC BFOC

order no. 943 291-001 943 290-001 943 290-021 943 290-901

¹ Depends on the used fiber

Description	OZD 485 P2 FSMA	OZD 485 G2 FSMA	OZD 485 G2 BFOC	OZD 485 BFOC-1300
Signal	RS 485
Topology	Line, Star, Tree
Datarate	0 ... 2 MBit/s
Power Supply	5V; 18...32V DC
Electrical Interface	9 Pol. Sub-D / 9 Pol. Terminal block
Range¹	0...80 m	0...2800 m	0...2800 m	0...22000 m
optical interface	FSMA	FSMA	BFOC	BFOC
order no.	943 291-001	943 290-001	943 290-021	943 290-901
¹ Depends on the used fiber

A module with two optical ports and ring redundant functionality for all RS 485-buses (e.g. Modbus) is in preparation. Order no. and delivery time on your inquiry.
